| MINITURE CCD CAMERA Model: CCN3442Y |
|
FEATURES
- Super Slim Head CCD Camera :φ7.5mm × 42mm
- 1/7 inch, 340,000 pixels, color CCD, clear and high-resolution picture.
- Video Output signal is NTSC.
|
 |
DESCRIPTION
1. Connect the AV Cable to Monitor(NTSC).
If you would like to connect with personal computer, you
can use a
USB video capture adapter supplied on the market.
2. Focus adjustment ：Turning the lens of CCD head.
|
 |
|
| APPLICATIONS |
|

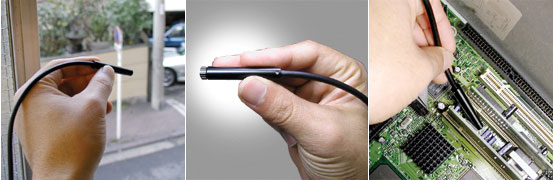

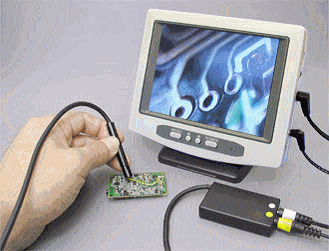

- Use as microscope or magnifying glass. Research & Development office, Designing & Engineering office, Factory（Production line, QA/IQC office）
- Use for scurity Camera.
- Use for component of product.
|
PRODUCT LINE-UP
(1) Long
Cable Model: CCN3412Y-3M
 |
Cable length 3m model
Head Diameter： 7.5mm
Head Length ： 42mm |
|
(2) Ultra Long Cable Model: 12m CCN3412Y-12M
|
Cable length ： 12m
model
Head Diameter： 7.5mm
Head Length ： 42mm |
|
(3) Side View Modeｌ: With light CCN3412YS
 |
Thin head 8mm model
LED light
（４ｐｃｓ chipp LED)
On/Off,Low, Hi |
 |
Head size: 8(Thickness)×12(W)×40(L)mm
Cable length: 1
Focus: manual 20〜infinite distance
Option: Lens adapter for higher magnification
（Refer Option of Handy mini）
Main controller size : 58.5(L)×34(W)×12.5(H)mm |
 |
 |
Basic specifications are same as Handy mini
340,000 pixels
1 / 7 inch CCD
NTSC Composite Video
|
|
| (4) Waterproof Model: With light 12m Cable CCN3412YWL-12M
|
|
TECHNICAL SPECIFICATIONS
| Sensor |
1 / 7 inch CCD |
| IR Cut Filter |
Attached |
| Indication Pixels |
340,000 pixels |
| Pixel Pitch |
4.52 μｍ×4.52 μｍ |
| Scanning Mode |
2：1 Interlace |
| Video Output Signal |
NTSC Composite Video |
| Field Angle |
51°（Level）, 39°（Perpendicular） |
| Focal Distance |
f =2.1mm |
| Brightness |
F = 2.9 |
| Material |
Head ：Aluminum、Mai Controller ：ABS |
| Cable Length |
１m |
| Cable Diameter |
4mm |
| Weight |
60g (Without A/C Adapter) |
| Operating Temperature/Humidity |
0〜40℃ / 20〜80％RH (Without Dew
Condensation)
|
| Power Supply |
DC12V |
| Input Current |
110mA |
| Working Distance and
Field Range（Handy mini , Standard lens) |
| Working
Distance(mm) |
Field Range |
| H(mm) |
L(mm) |
| 5 |
2.6 |
3.4 |
| 10 |
6.7 |
9.0 |
| 20 |
12 |
16 |
| 40 |
25 |
33 |
| 80 |
52 |
69 |
| 150 |
98 |
130 |
|
EXTERNAL DIMENSIONS |
AC Adapter(O/P:12VDC) : Japanese specifications Adapter |
| Image sample by
Handy mini (Standard lens) |

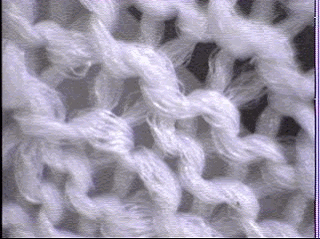

Image of speaker net |

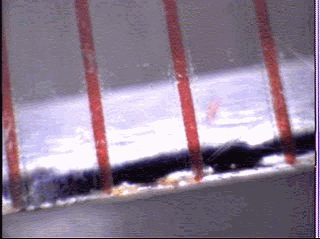

Image of ruler, scale: 1mm
Working distance: 5mm |
|

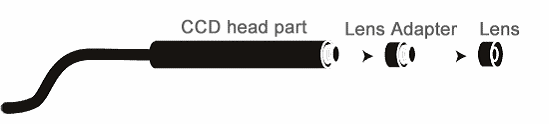

■ Options
（１）Lens
Adapter (4 adapters/per set) for higher magnification.
 |
Magnification by Monitor Size and Lens Adapters
(Reference Data）
| Adapter |
Magnification by Monitor Size
and Lens Adapters |
Field Range
L×W
mm
|
Working Distance
mm
|
| 5 inch |
12 inch |
14 inch |
19 inch |
21 inch |
| 1 pc |
25 |
60 |
70 |
95 |
105 |
3.4×4.0 |
3 |
| 2 pcs |
60 |
144 |
168 |
228 |
252 |
1.2×1.6 |
2 |
| 3 pcs |
115 |
276 |
322 |
437 |
483 |
0.6×0.8 |
1.5 |
（２）Telephotographic
Lens CCN-OP-TL10
Picture of Telephotographic Lens + Lens
Adapter. |
[Image]
Gray Color : Image of
Standard Lens (51°)
Red Color：Image of Telephotographic Lens |
SPECIFICATIONS
| Focal Distance |
ｆ＝12 |
| Brightness |
Ｆ＝2.7 |
| Field Angle |
10°（Level）,
7°（Perpendicular） |
| Diameter |
7.5mm |
| Length |
13.5mm |
| Operating Temperature |
0〜40℃ |
|
Magnification by Monitor Size and Lens Adapters
(Reference Data）
| Adapter |
Magnification by Monitor Size
and Lens Adapters |
Field Range
L×W
mm |
Working Distance
mm |
| 5 inch |
12 inch |
14 inch |
19 inch |
21 inch |
| 1 pc |
9 |
21 |
25 |
34 |
38 |
8.4×11.2 |
80 |
| 2 pcs |
18 |
43 |
50 |
68 |
75 |
4.2×5.6 |
45 |
| 3 pcs |
28 |
67 |
78 |
106 |
117 |
2.7×3.6 |
33 |
Combination with Telephotographic Lens and Lens
Adapters
It can take Magnification with long distance as
follows.
（３）Wide
Angle Lens CCN-OP-WL72
Picture of Wide Angle Lens + Lens Adapter. |
＜Image＞
Gray Color : Image of Standard
Lens ( 51°)
Red Color：Image of Wide Angle Lens |
Specifications
| Focal Distance |
ｆ＝2 |
| Brightness |
Ｆ＝3.0 |
| Field Angle |
72°（Level）,
54°（Perpendicular） |
| Diameter(Max.) |
14mm |
| Length |
22 mm |
| Operating Temperature |
0〜40℃ |
Used for surveillance camera, observation camera
and photography camera
for prototype etc. |
|
|
（4） USB Video
Capture
If you would like to connect the CCD Camera with P/C,
you can use this
USB video capture.
 |
| Video input signal |
NTSC/PAL |
| Power input |
From USB port |
| I/F(interface) |
USB2.0 based |
| Frame rate |
VGA(640Hx480V)30frame/second |
| Dimension |
37x57x23mm |
| Operating environment |
Pentium4 1.7GHz
（recmendation 2.0AGHz )
PentiumM 1.7GHz
Memory: 256MB
OS: Windows XP Vista |
| Attached soft |
USB driver |
| Attached USB cable |
cable length 500mm |
|
（4）7 inch TFT Monitor |
| Video input signal |
NTSC/PAL |
| Resolution |
800(W)x400(H)pixels |
| Brightness |
220cd/m2 |
| Opration Voltage |
DC12V |
| Dimension |
182(W)ｘ133(H)ｘ35(D) |
| Weight |
2kg |
| Function |
Brightness, Contrast, Saturation and Hue |
| Video In terminal |
1(BNC and RCA) |
| S-Video In terminal |
1(Mini Din) |
| Video Out terminal |
1(BNC and RCA) |
| AC Adapter |
In:AC100V〜AC240V
Out:DC12V , 1.5A |
| Safety standard |
UL, PSE |
|
DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND TECHNICAL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
|
