MINITURE CMOS CAMERA Model: TBS-8.5 TBS-8.5 Catalog (188kb)

FEATURES

  • Small camera head measuring:φ8.5mm × 26mm
  • High resolution: 378,000 pixels.
  • Illumination: Chip LED (6pcs) with ON/OFF switch on controller

DESCRIPTION

  1. Connect the AV Cable to Monitor(NTSC).
    If you would like to connect with personal computer, you can use a USB video capture adapter supplied on the market.
  2. Focus adjustment@FTurning the lens of CCD head.

APPLICATIONS
    1. Use as microscope or magnifying glass.
    2. Use for magnifying products using LED illuminations, lighting up to 30cm of distance.
    3. To view inaccessible or dark spots.
    4. As a component of imaging system.

TECHNICAL SPECIFICATIONS
Sensor CMOS
Picture output signal NTSC composite video
Resolution 378,000 Pixels@720(H)×525(V)
Focus Fixed focus from 5cm`∞
IR Cut Filter @ Attached
Angle of view 64°iHorizontalj50°iVerticalj
Brightness e2.8
Working temperature 0`50
Supply Voltage 5V DC
Power consumption Maximum 650mW
Sensitivity of Light Min. Illumination 0.2LuxiF1.4j
Illumination

Chip LED (6 pcs)
Light up distance about 30cm

Dimensions

Camera head:φ8.5 x length 26
Controller 120 (L) x 60 (W)  x 30m (H)

Cable Diameter

φ3.5mm, 1.5C-2V coaxial compound cable

Cable Length@ Standard 2 meters @
Housing material

Camera: ABS Resin
Glass (TEMPAX,Window Partj
Controller: Aluminum iblack alumite treatmentj

Controller

Picture Output JackFRCA
Power in jack: 5VDC
On/Off switch
LED light intensity adjustment  knob

Standard set

Camera head (1 pc)
Cable (1 pc, 2m long)
Controller (1 pc)
Power adapter for 100/240V
AC input/ 500VDC output (1 pc)
Video cable )1 pc)

Optional extension cable 3m, 5m or 10m, 15m, 30m, 50m or 100m long (in case of optional longer cable able size will be φ3.5mm, and camera head will be 8mm longer

Other Models

(1)Waterproof Model: TBS-11.5-W
  • Small diameter 11.5mm head
  • Waterproof
  • LED@light
  • Cable length@2m
  • NTSC composite video
  • 378,000 Pixels@720(H)~525(V)
  • Fixed focus from 5cm`
  • Camera head:8.5 x length 26?

(2) Stick Type Model:TBS-8.5-PF
  • Stick TypeTube
  • Small diameter 11mm head
  • LED@light
  • Camera Length with Flexible Stick 26cm
  • NTSC composite video
  • 378,000 Pixels@720(H)×525(V)
  • Fixed focus from 5cm`∞
  • Camera head:11 x length 36?

(3) Waterproof Stick Type Model:TBS-8.5-PFW
  • Stick Type Tube
  • Small diameter 11.5mm head
  • Waterproof
  • LED@light
  • Camera Length with Flexible Stick 26cm
  • NTSC composite video
  • 378,000 Pixels@720(H)×525(V)
  • Fixed focus from 5cm`∞
  • Camera head:φ11.5 x length 43
(4) Flexible Tube Type Model:TBS-8.5-PFL
  • Flexible Shape Memory Tube
  • Small diameter 11mm head
  • LED@light
  • Camera Length with Flexible Stick 26cm
  • NTSC composite video
  • 378,000 Pixels@720(H)×525(V)
  • Fixed focus from 5cm`∞
  • Camera head:φ11 x length 36

(5)Waterproof Flexible Tube Type Model:TBS-8.5-PFLW
  • Flexible Shape Memory Tube
  • Waterproof
  • Small diameter 11.5mm head
  • LED@light
  • Camera Length with Flexible Stick 26cm
  • NTSC composite video
  • 378,000 Pixels@720(H)×525(V)
  • Fixed focus from 5cm`∞
  • Camera head:φ11.5 x length 43

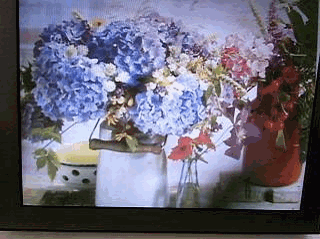

Image sample







Image inside SUS pipe.
Inner diameter33mm length 20cm
Well lit Room(LED OFF).Indoor Scenery. Subject distance 5-6m. Inside image of bag. With LED lighting 25cm to the bottom.

Painting 30cm in distance. Bright Room (LED OFF). 12cm to cable connector, 40cm to back wall.

@Options
iPjBuilt-to-Order Cables
3m, 5m or 10m, 15m, 30m, 50m or 100m long (in case of optional longer cable able size will be φ3.5mm, and camera head will be 8mm longer.

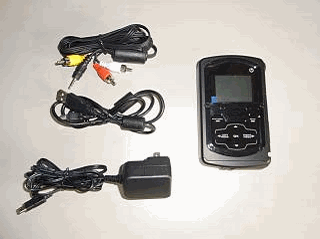

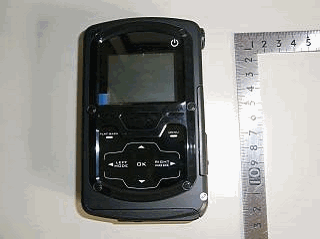

iQjPortable DVR-HD



SPECIFICATIONS
Recording Resolution 1280x720 pixels
SD Card Memory Max 32fa 17.2hours for recording available
Battery Max 9 hours of recording
Camera 1Mega Pixel@1280x720HD 1/4 inch CMOS sensor
Outgoing Image Composite AV/HDMI
Function Mode Inner Camera/Outside Source/Audio Recording
Recording Frame Rate 30FPS/SEC
Visual Sight 53°
Automatic Timer 10sec@20sec
Brightness/ White balance AUTO
Recording mode Repetitive recording/motion detector mode
Operating temperature 0`50
Weight 20g
Attached SDCard@32GB
AC Adapter@5V/2A
USB code
AV code



i3j USB@Video Capture
If you would like to connect the CCD Camera with P/C, you can use this USB video capture.
Video input signal NTSC/PAL
Power input From USB port
I/F(interface) USB2.0 based
Frame rate VGA(640Hx480V)30frame/second
Dimension 37x57x23mm
Operating environment Pentium4 1.7GHz
irecmendation 2.0AGHz )
PentiumM 1.7GHz
Memory: 256MB
OS: Windows XP Vista
Attached soft USB driver
Attached USB cable cable length 500mm

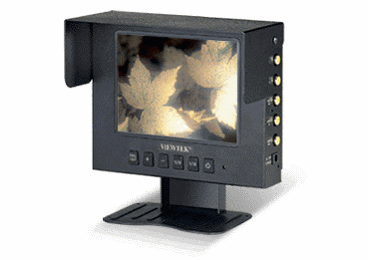

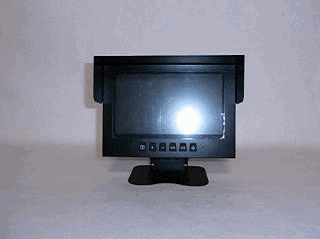

i4j7 inch TFT Monitor


Video input signal @ NTSC/PAL
Resolution 1,440(W)x234(H)pixels
Pixel Pitch 0.107(W)x0.370(H)mm
Brightness 280nit
Dimension 195.7(W)136.2(H)356(D)
Weight 1.2kg
Function Brightness, Contrast, Saturation and Hue, Picture Image Rotation Mode
Video In terminal 2 x RCA (BNC Connecter Attachement Available)
Audio In terminal 1x RCA
Video Out terminal 1 xRCA (BNC Connecter Attachement Available)
Audio Out terminal 1(RCA)
LED Backlight Duration of 30,000 hours
AC Adapter In:AC100V,31VA,50/60Hz
Out:DC12V , 1A

DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND TECHNICAL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
