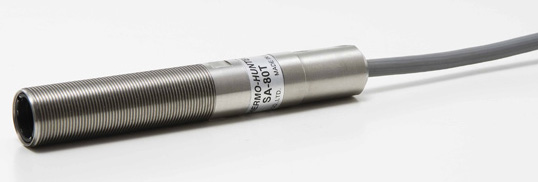

SA Series (SA-80T)
sa series sa-series.pdf
PDF Files


Quick response time

  • High-speed response time 100ms/90%

Tough and Heavy-Duty

  • Waterproofing ability in compliance with IP67
  • High heat resistance up to 70°C of ambient temperature
  • High noise resistance and accurate temperature measurement with
    stable operation due to SUS body and silicon lens
  • Analog output of 4-20mA highly resistant to noise


  • Cylindrical shape enabling installation in a limited space

Wide-range & long-focus setting

  • Temperature measurement range: 0-400°C (SA-80T-4A)
  • Area size: ø80mm/ 500mm
Field of View

Connection Diagram

Outside Dimension


Models SA-80T-2A SA-80T-4A
Temperature Range 0 ~ 200°C 0 ~ 400°C
Area Size ø80 / 500mm
Optics Silicon Lens
Spectral Response Thermopile / 8 ~ 14µm
Response Speed 100ms / 90%
Accuracy 0 ~ 200°C: ±2°C 201 ~ 400°C: ±1%
Repeatability ±1°C of reading value
Analog Output 4 ~ 20mA
Emissivity ratio (e) Adjustment 0.95
Power Supply DC12 ~ 24V±10% / MAX 70mA
Ambient Temperature 0 ~ 70°
Environmental Humidity 35 ~ 85%Rh (without dew condensation)
Storage Temperature -20 ~ 70°
Vibration Resistance 10 ~ 55Hz, amplitude 1.5mm,
two hours each in the direction of X, Y, Z
Water Resistance IP67
Materials SUS / AI
Weight 180g

Accessories : M18 Nutx 2pcs. Optional : Blackbody tape
*Specification may change without prior notice.
