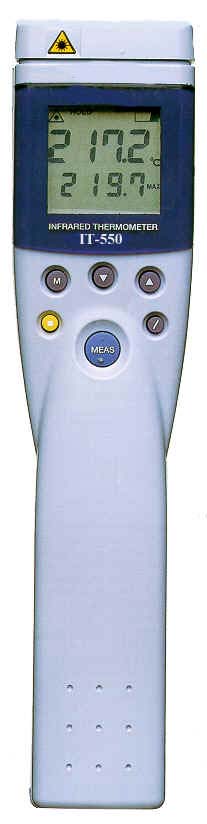

| IR THERMOMETER IT-550 |
|
PC compatible IT-550 |
FEATURES
-
Portable/on-line operation.
-
130 data memory with address of each measurement
-
IP54 splash proof housing.
-
Excellent target size to measure distance ratio.
-
Analog and RS232 output.
-
Twin laser beam sighting.
-
Resolution 0.1°C or 1°C.
|
|
IT-550 |
DESCRIPTION
Infrared thermometer IT-550 is a high performance thermometer for non-contact temperature measurement in the range from –50 to 500°C. It has a neat compact body with advanced
optics and state-of-the-art temperature
measuring technology.
Twin Laser Beam Sighting accurately indicates the area being measured. Features also include amazingly low temperature, measuring spot of ø24 mm at 1,000 mm or2.5 mm-70 mm and choice of data output configurations.

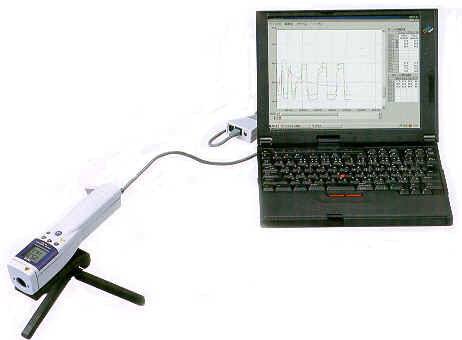

Optional
extension kit includes Windows based data processing software allows
connection to printer or PC. |
Splash-resistance body |

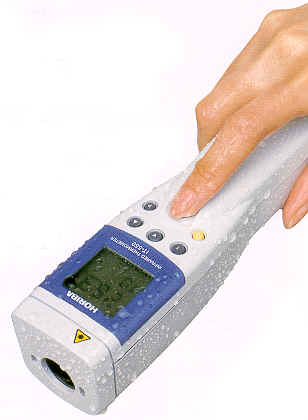

Splash Resistance body
IT-550 thermometers are splash resistant, so they can be safely used with wet hands, and in wet environment and rain. This instrument is ideally suited for industrial research or food safety applications. |
SPECIFICATIONS |
| Model |
IT-550F |
IT-550L |
IT-550S |
| Measuring
range |
-50 to 500°C |
| Spectral
response |
8 to 16 mm
|
| Sensor
& lense |
Thermopile, Silicon |
| Display
range (resolution) |
-55.0~505.0°C
(0.1°C)
|
-55
~ 505°C (1°C) or -55 ~ 505.0°C (0.1°C)
|
| Repeatability |
-50.0~-0.1°C:
Within ±1.0°C
0.0~500.0°C:
Within ±0.5°C
|
Resolution
0.1°C: -50.0~-0.1°C:Within ±1.0°C 0.0~500.0°C: Within ±0.5°C
Resolution 1°C:-50~-1°C: ±2°C 0~-500°C: ±1°C
|
Response
(95% response) |
Less
than 1.6s |
Less
than 0.7s (resolution 1°C) Less than 1.6s (resolution 0.1°C)
|
| Field
of View |
ø
24±3 mm at 1000 mm
|
ø
2.5 mm at 70mm
|
| Emissivity |
Adjustable
in 0.10~1.00, in 0.01 increment
|
| Sighting |
Twin
laser beam marker (class II)
|
| Protection |
Splash-proof,
IP54(IEC529)
|
| Operating
range |
0~40°C,
relative humidity 35~85%, and no dew condensation
|
| Power
source |
9V
battery (6F22 or 6LR61) x 1 or AC adapter
|
| Battery
life |
20
continuous hours with laser marker in use (alkaline battery)
|
| Dimension
& weight |
L200
x W47 x H48 mm, 280g (battery included)
|
| Functions |
Data
memory (130 points), printer output, RS232C, auto power off, camera tripod
screw hole
|
Alternative
display resolution, analog output(0~1VDC scalable), RS232C, Max/Min value
display, auto power off, camera tripod screw hole
|
| Storage
temperature |
-20~55°C,
no dew condensation
|
| Standard
accessories |
Instruction
manual, carrying case, hand strap, battery, screw-driver |
Note: Use of analog output, printer output, RS-232C, and the AC adapter requires
the expansion kit option (sold separately)
|
APPLICATIONS |
FIELD OF VIEW |

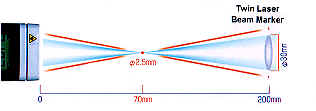

IT-550S: ø 2.5mm at 70mm

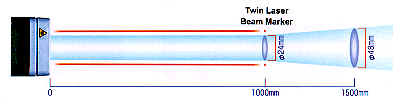

IT550F &
IT550L: ø 24mm at
1000mm
|
|
|
