PROCESS
CONTROLLERS |
DIGITAL
PID CONTROLLERS
|
|
SRS0
Series
A controller with a
space-saving depth of 62 x 65 mm
compared to existing products with a
depth of 100 mm. 3-point SV setting; 3
types of PID value can be set.Control
output of ON/OFF hysteresis mode is
selectable. Heating/cooling 2-output
control (optional) can be
selected.4-pattern, 8-step program
(optional) can be selected. 3-point
maximum event output (optional) can be
selected. Analog output (optional) can
be selected. 2-point CT input (optional)
can be selected. 4-point external
control input maximum (optional), can be
selected. Communication function
(optional), master and slave mode can be
used.
Since this is filled with an insulator
(magnesium oxide), compared to the general
type, it has excellent resistance to
tremors and collision impact. It is also
characterized by a speedy response to
temperature change.
|
|
|
SRS11A/12A/13A/14A
Series
Multi-input and multi-range
performance and 2-output heating and
cooling control available
|
|
|

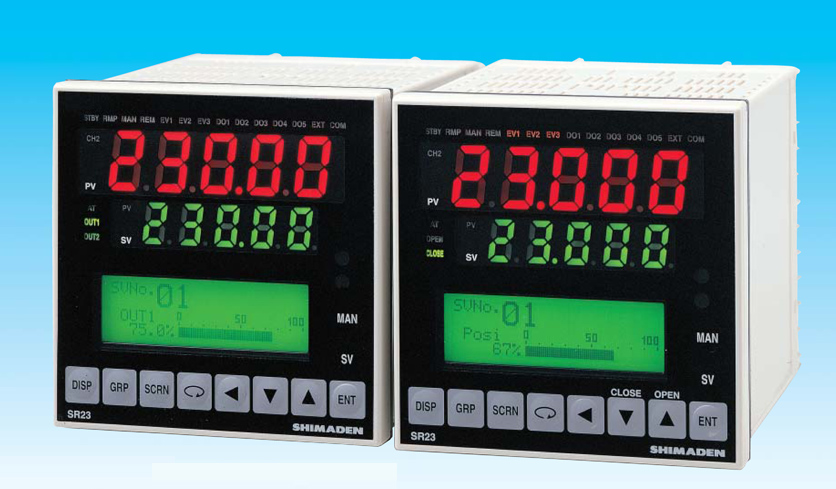

SR23
Series Digital
Controller
- 2-channel controller
- Independent
2-loop/internal cascade/ 2-input
operation control
- High accuracy
- High sampling cycle 0.1
sec
- Auto-tuning PID/ Expert
PID/ Self-Tuning PID
- Multi-Setting of 10 set
values
- Independent
universal-input
|
|
|
SR80
Series
Digital multi-function
PID controller
- High accuracy
(0.25% f.s.)
- Large 20mm bright
display <SR83>
- 2-outputs for
heating and cooling control
- Dust and splash
proof IP66 front panel
- RS232C/RS85 and
CC link communication
- Wide selection of
optional functions
- CE approved
|
|
|
SR90
Series(SR91,92,93,94)
- Digital
multi-function PID controller
- Multi-input and
multi-range performance
- Large 20mm bright
display <SR93>
- 2-outputs
for heating and cooling
control
- RS232C or RS485
Interface
- Dust and splash
proof IP66 front panel
- A wide selection
of optional functions
- CE approved
|
|
|
MR13
Series
Three channel digital
PID controller
- 3-channel
input, 3-channel setting and
simultaneous 3-channel display
- Accuracy: 0.3% f.s. 1
digit
- Follow up type PV input
and SV setting function possible
- RS232C/RS485 Interface
- Programmable 1 pattern
with 9-step functions.
- Remote/local DI input
function
- CE approved
|
PROCESS INDICATORS
|
|
SD16A
Series
Three channel digital
PID controller
- DIN 96 X 48mm process
controller with 20mm high large digits,
multi-input, multi-range, analog output,
communication interface and a wide range
of optional features. A six point
selector switch KR16 available for
combined use.
- Selector
switch
|
|
|
SD
24 & KR16
- High Accuracy }0.1% FS+1
digit
- 1/1000?C Resolution
Indication Possible(Pt input 0.000 ?
30.000?C)
- 3 Display Modes (Peak
Hold, Bottom Hold, Display Hold)
- External Control Input
(2 points) as a Standard Feature
- C contact (2 points) or
a contact (4 points) can be selected for
alarm output.
- Analog Output Hold
Function (Hold Display Value Output)
- Communication Function
RS-485/RS-232C
(Shimaden Standard Protcol/MODBUS)
- Linear Approximation
Operation Function (Voltage/Current
Input only)
- Selector
switch
|
PROGRAMMABLE PID CONTROLLERS
|
|
FP93
Series
Digital programmable
PID controller
- Full multi-input and
multi-range performance
- User selectable
Thermocouple, RTD, V, mV and Current
inputs
- Large 20mm bright
display
- 40-step programs
function
- RS232C or RS485
Interface available
- Dust and splash proof
front panel equivalent to
IP66
- CE approved
|
SERVO CONTROLLER
|
|
EM70
Series
Digital Servo
Controller
- High visibility of
Control Motor opening display
- Zero/Span adjustment of
opening
- RS232C or RS485
Interface available
- Dust and splash proof
front panel equivalent to
IP66
- A wide selection of
optional functions
- CE approved
|
|
