VERY THIN PLATINUM RESISTANCE THERMOMETER

This is the thinnest and smallest PRT in the world. The Surface probes are normally assembled with metal blocks in which RTD elements are installed. In addition, the metal blocks are also hard to provide sensing in a curved surface. Or, FILMED Platinum Resistance Thermometer was reluctantly used. Due to using the platinum wire wound type RTD, PRTs advantages, such as smaller error, smaller aging variation (compare with thermocouples), better Very Thin Platinum Resistance Thermometer
reproducibility, higher sensitivity, higher stability etc. are left.

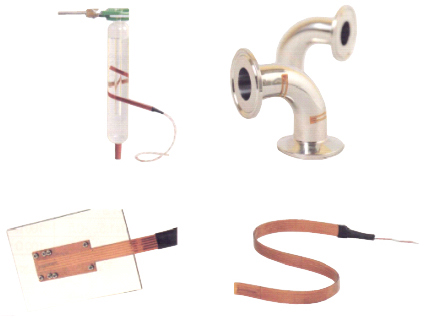

Very Thin Platinum Resistance Thermometer

Features
bulletFlexible.
bulletSmall aging variation.
bulletThe thinnest Platinum wire wound RTD
bulletBetter sensitivity.
bulletBetter Reproducibility at the measuring temperature.


Specification
Resistance Pt100ohm (at 0 deg. C)
Class DIN/IEC A or B
Tolerance Class A : ±(0.15+0.002|t|), Class B : ±(0.3+0.005|t|)
Rated Current 0.5mA, 1mA or 2mA
Temperature Range Max. 200ºC
Temp. Coefficient R100/R0 = 1.3851 (equivalent)
Stability Class A : ±0.15 or less, Class B : ±0.3 or less
Wire system 3-wire or 4-wire system

PRTD Elements(Sensing Dimension)
No. Model No. Resistance Width
(mm)
Length
(mm)
Thickness
(mm)
1 NFR-CF2-0305 100 3.0 5.0 0.2
2 NFR-CF3-0403 100 4.0 3.0 0.3
3 NFR-CF3-0503 100 5.0 3.0 0.3
4 NFR-CF2-0505 100 5.0 5.0 0.2
5 NFR-CF4-0505 100 5.0 5.0 0.4
6 NFR-CF3-0508 100 5.0 8.0 0.3
7 NFR-CF2-1010 100 10.0 10.0 0.2
8 NFR-CF4-1010 100 10.0 10.0 0.4
9 NFR-CF4-0815 100 8.0 15.0 0.4

Application


When you send us your inquiry, please give us the following information.
Dimensions of Very Thin Thermometer

Specification Film (Capton)

Lead Cable

  • 1. Class : DIN/IEC A or B
  • 2. Excitation Current : mA
  • 3. Number of Wire : 3 or 4
  • 4. Width (mm) : W =
  • 5. Sensing Length (mm) : SL =
  • 6. Total Film Length (mm) : L
  • 7. Thickness (mm) : t
  • 8. Length (mm) : B =

Construction of our Model Number

Construction of Model number
