Air Ultrasonic Sensors - Low frequency type & High frequency type |
|
Features
- Small & lightweight
- Low power consumption
- High accuracy & reliability
- High sound pressures & sensitivity
- Temperature, humidity, dirt, etc. environment resistance
Functions
- Space transfer of the signals
- Apply of the Doppler effects
- Measurements of transfer times
- Pulse reflection time measurement
- Detections of the continuous signals
- Measurements of Karman vortex flows
|
|
|
Description
The air ultrasonic sensor radiates ultrasonic waves in the air. In turn it also receives reflected wave from a target and measures distance from source to the target. Ultrasonic waves are also reflected by transparent objects thus can be used to detect transparent targets that cannot be detected by light or infrared rays. method of the transmission and reception of reflected waves can be selected to suit specific applications. |
|
Mounting methods
- One sensor reflection method (T/R, dual-purpose)
- Two sensor reflection method (T/R, single-purpose)
- Two sensor opposed method (T/R, single-purpose) [Notes, T; transmitted, R; received]
|
|
Typical Applications
- Distance measurement
- Intrusion alarm sensors
- Object counting on the belt conveyors
- Automatic opening and closing door sensors
- Proximity switch in the FA facilities
- Equipment remote control sensors
- Flow sensor of liquid or gas
- Paper double-feed detection sensors
- Fluid level sensors & Water level sensors
|
|
Placement method of the ultrasonic sensor
|
|

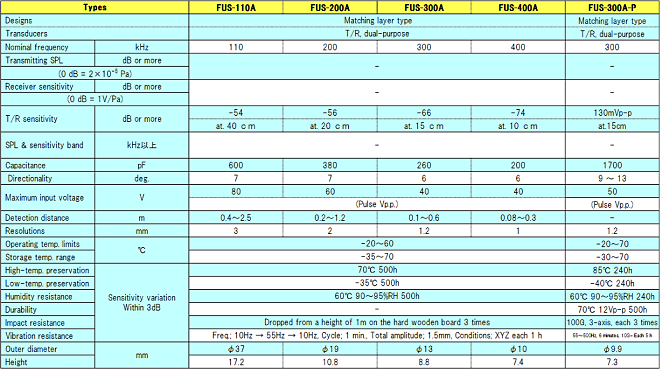

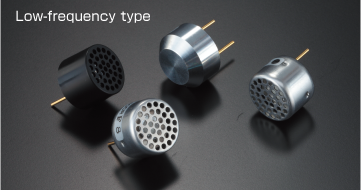

FUS Series / Low-frequency type
|
|

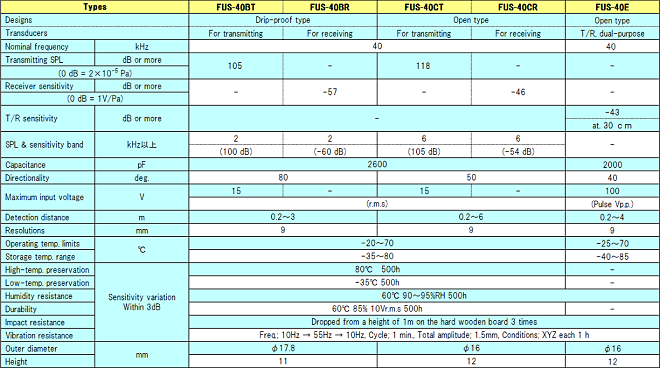

FUS Series / High-frequency type
|
|
Notes on use
- The sensor has directivity. Note the mounting and direction.
- The negative terminal is connects to the case, and have been shielded. Please note the connection method. (except for the FUS-40E.)
- The sensor may be caused the noise by the impacts. Please use to holds the sensors in buffer material as foamed rubber.
- There is a possibility that the insulation resistance is lowered. Avoid DC voltage is applied for a long time.
- This sensor can not be used in water.
- For improvement, it may want to change the specifications without notice.
|
