TSS-5X-3 catalog |

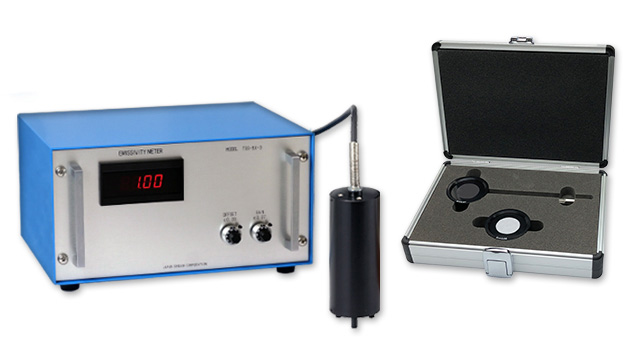

- The TSS-5X-3 can easily measure emissivity at room temperature and clearly display emissivity data.
Knowing emissivity is helpful for saving energy.For example,it is possible to increase the emissivity efficiency of electric heaters and design products to focus on heat dissipation and insulation. The TSS-5X-3 can easily measure emissivity without heating targets at room temperature. When you measure their emissivity,you can use two standard measuring devices with fixed emissivity,one with a 0.97 black surface rate and the other with a 0.06 mirror surface rate. Reflected energy is detected by reading infrared rays that reflected off of the target and reach the sensor head through a small hole in the black body.
| Model | TSS-5X-3 |
| Measurement method | The reflection energy detection method by the infrared radiation from the constant temperature emission source. |
| Spectral response | 2 - 22μm |
| Measurement range | Emissivity 0.01 － 1.00 |
| Accuracy | ± 1% of full scale |
| Measurement size | ± ∅15mm |
| Measurement distance | 12mm |
| Display | Digital meter 2 decimal places |
| Recorder output | 100mVFs or 1VFs |
| Ambient / temperature | 10 - 45℃ ⁄ 35 - 85% (non-condensation) |
| Supply voltage | AC100 - 240V 30W |
| Dimension & Weight | Sensor head : ∅51x137Lmm, 0.6kg (with 3000Lmm robot cable) |
| Accessories | Aluminium box : H84 x W238 x D185mm, 1.1kg 2 standard measuring devices with a box. (Emissivity : 0.06 & 0.97) |
| Response time 0.1sec. (0～63%) by recorder output | 0.1sec. (0 - 63%) by recorder output |

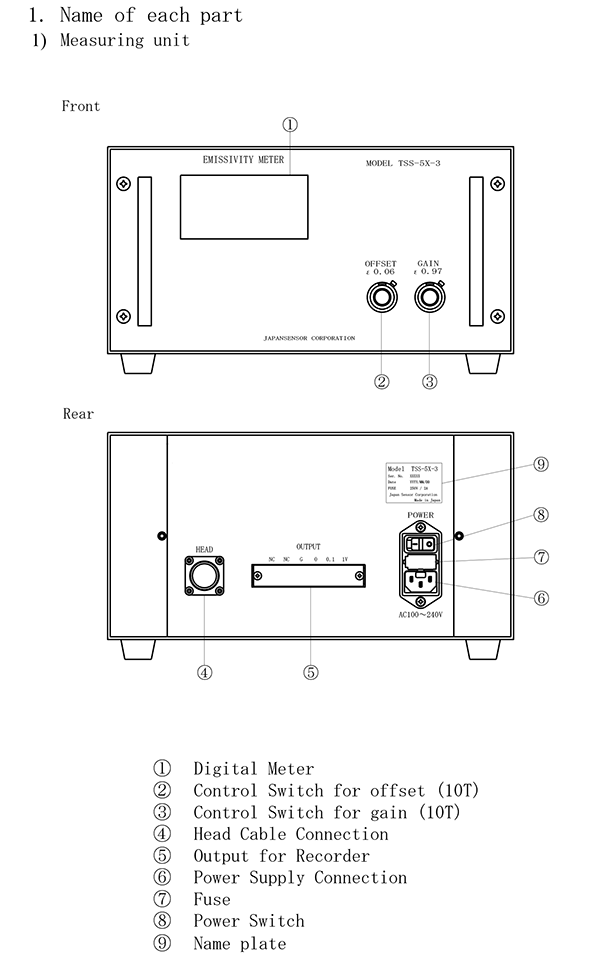

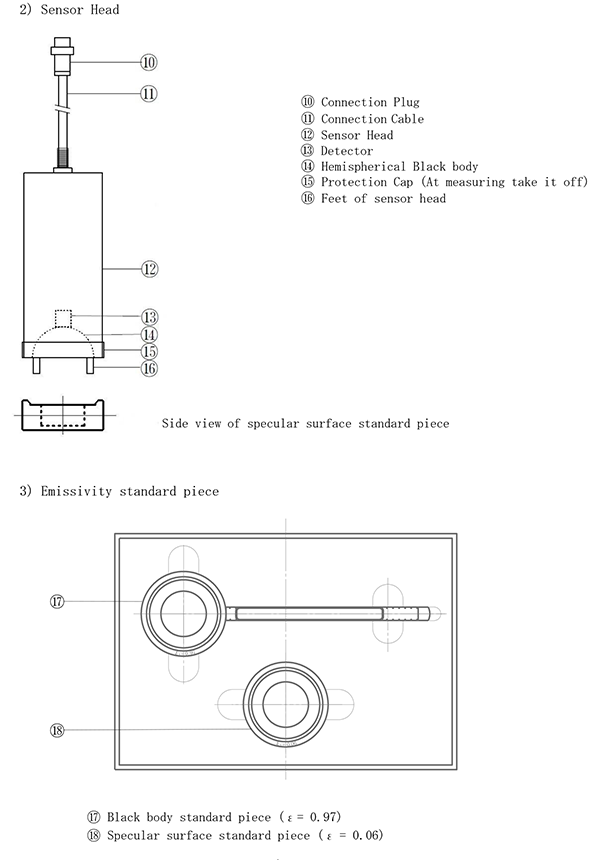

NAME OF EACH PART
