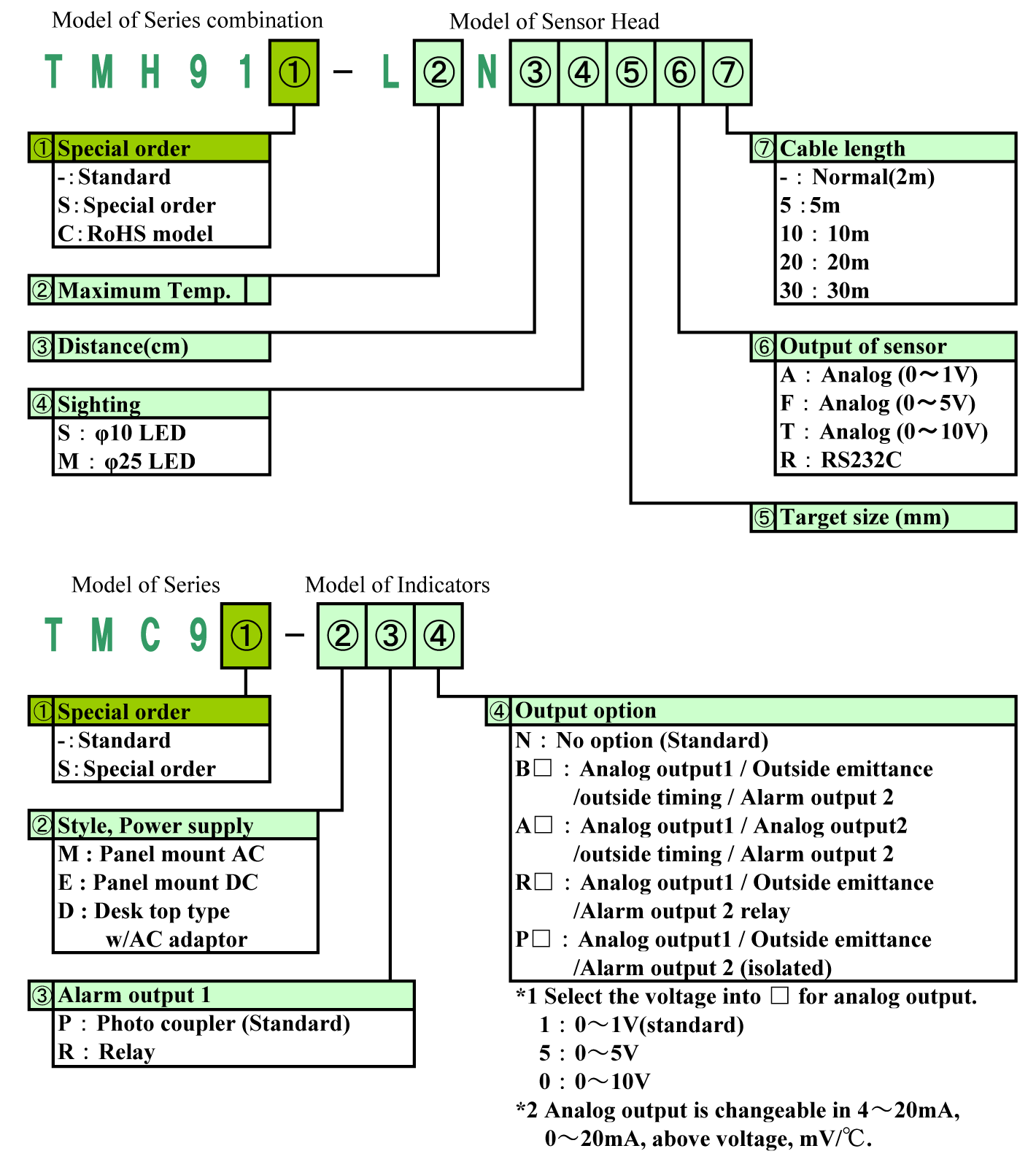

| TMH91 Series - Infrared Thermo Spot
Sensor |
TMH91.pdf (PDF) |
| FEATURES |
 |
Small
& Lightweight by resin housing. |
|
The
setting emissivity is possible at sensor
head. |
|
High
temp. type is very wide measurement range.
|
|
Temp.
range : 0～500℃（2types) &
0～1350℃（1type）. |
|
High
speed response 30msec.(analog output type only). |
|
Low temp.
type is available to use as temperature
sensor too. |
|
Only
thermometer's sensor head measurement temperature is
possible. |
|
 |
|

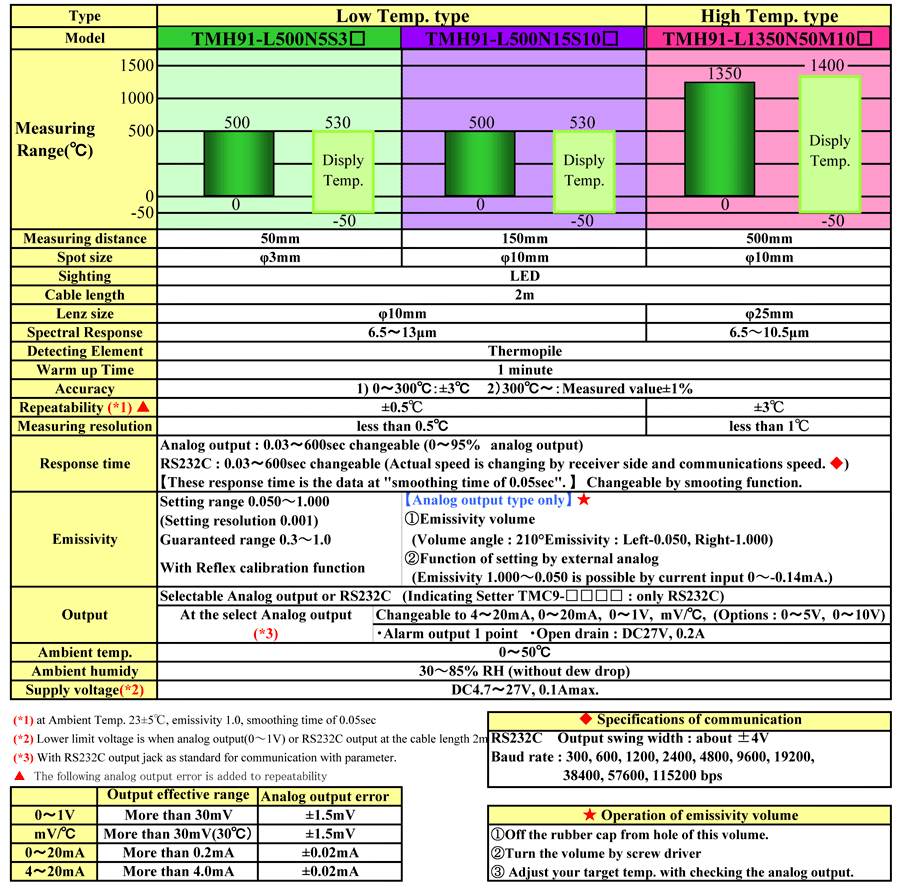

SPECIFICATIONS |
|
|
 |
2
type output |

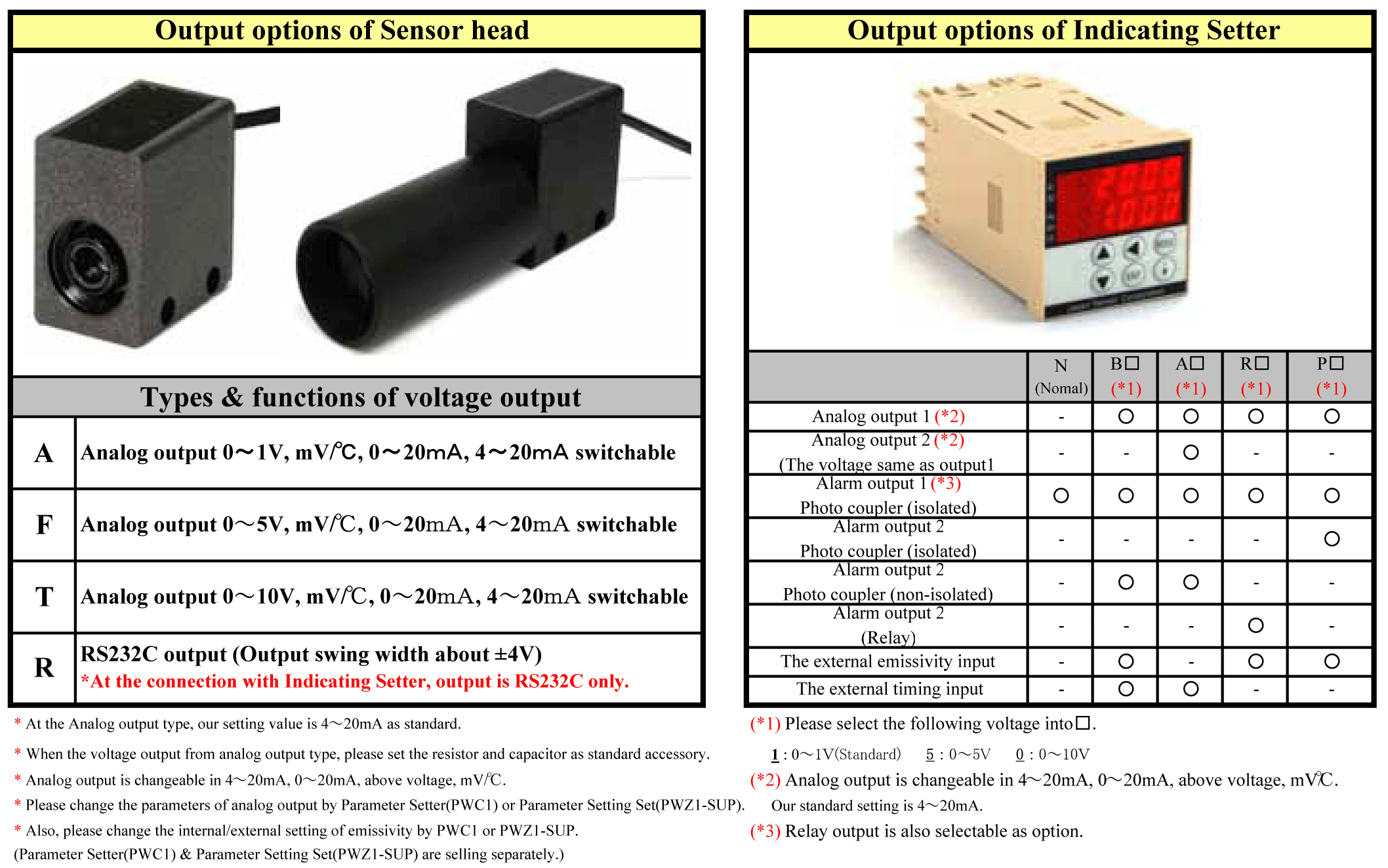

【Analog
output】
Changeable to 4～20mA, 0～20mA, 0～1V, mV/℃,
Setting emissivity is
possible on sensor head without external
parameter setter.
【RS232C】
To program the communication software for the
setting by PC (Personal Computer) on your side is
possible.
※ Power supply : DC4.7～27V, 0.1Amax. |
When you need a parameter
setter or display module, please use the following
setters. |
|

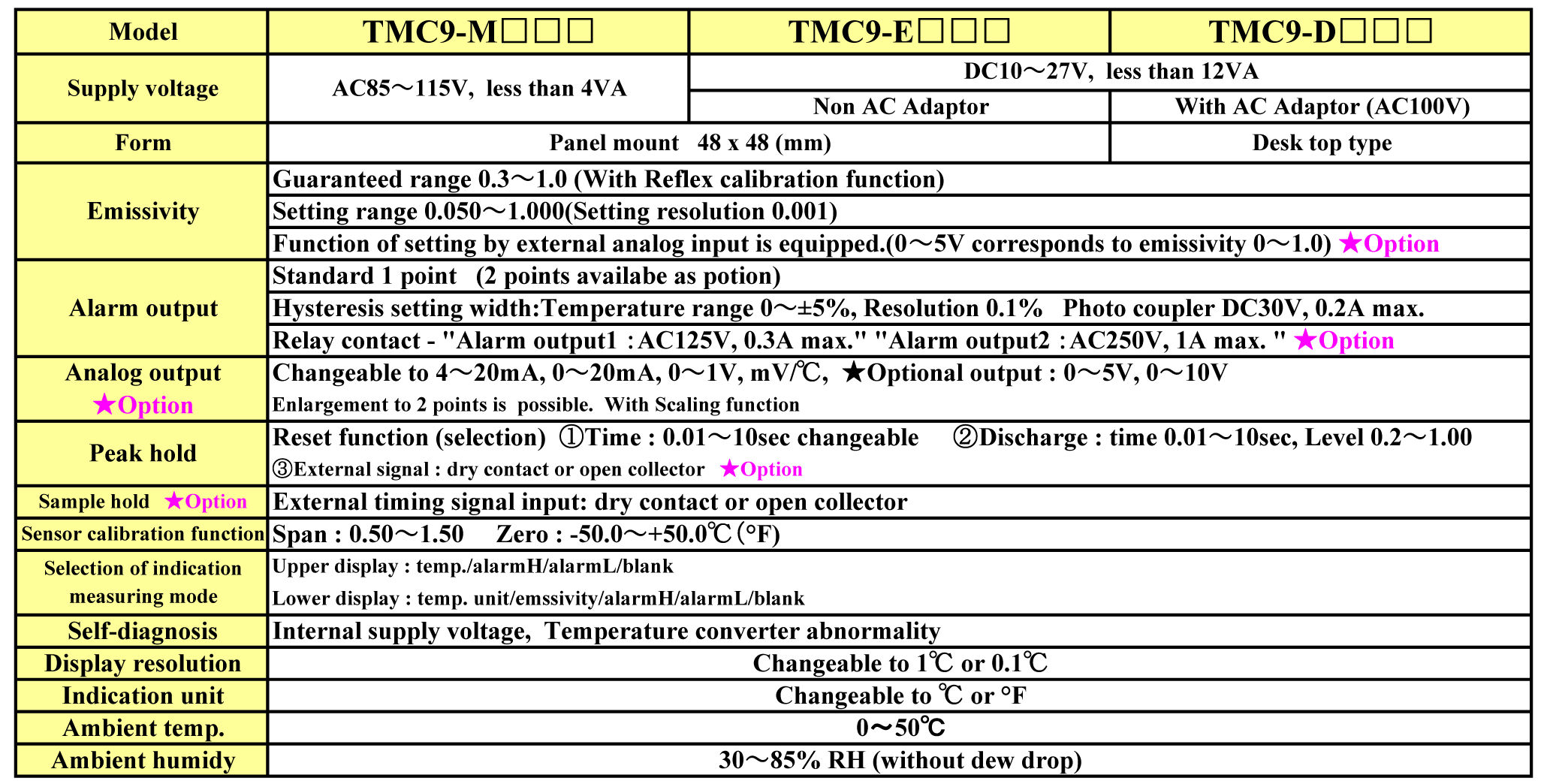

| Thermometer
connectable type |
|
RS232C only
 |
Indicating

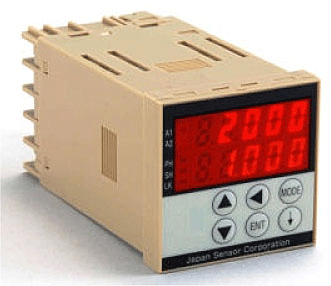

Setter TMC9-□□□□ |
 |
*
Power supply : Selectable RS232C only
【AC85～115V】 or 【DC10～27V】
* Alarm output 1point as standard
* Analog output is option (Selectable in 4 types) |
|
RS232C &
Analog
|
Parameter
Setter PWC1 |
 |
* Handy
type
* AA Battery x 4
* With communication cable 1.8m as accesorry between
thermometer and PWC1 |
|
| RS232C &
Analog |
Parameter Setting
Set PWZ1-SUP |
 |
Parameter
setting set:
* Parameter writer software (PWS1)
* USB-RS232C converter (PWU1-U)
* Parameter setting cable (PWB1-PMP)
* Windows XP or Windows2000 in
Japanese version is necessary for use of this
parameter setting set. |
|
|
| Back to Top |
|
|
|
|
| Back to Top |
|
|
|
|
|
| Back to Top |
|
|
|
|
|
|
|
|
| Back to Top |
|

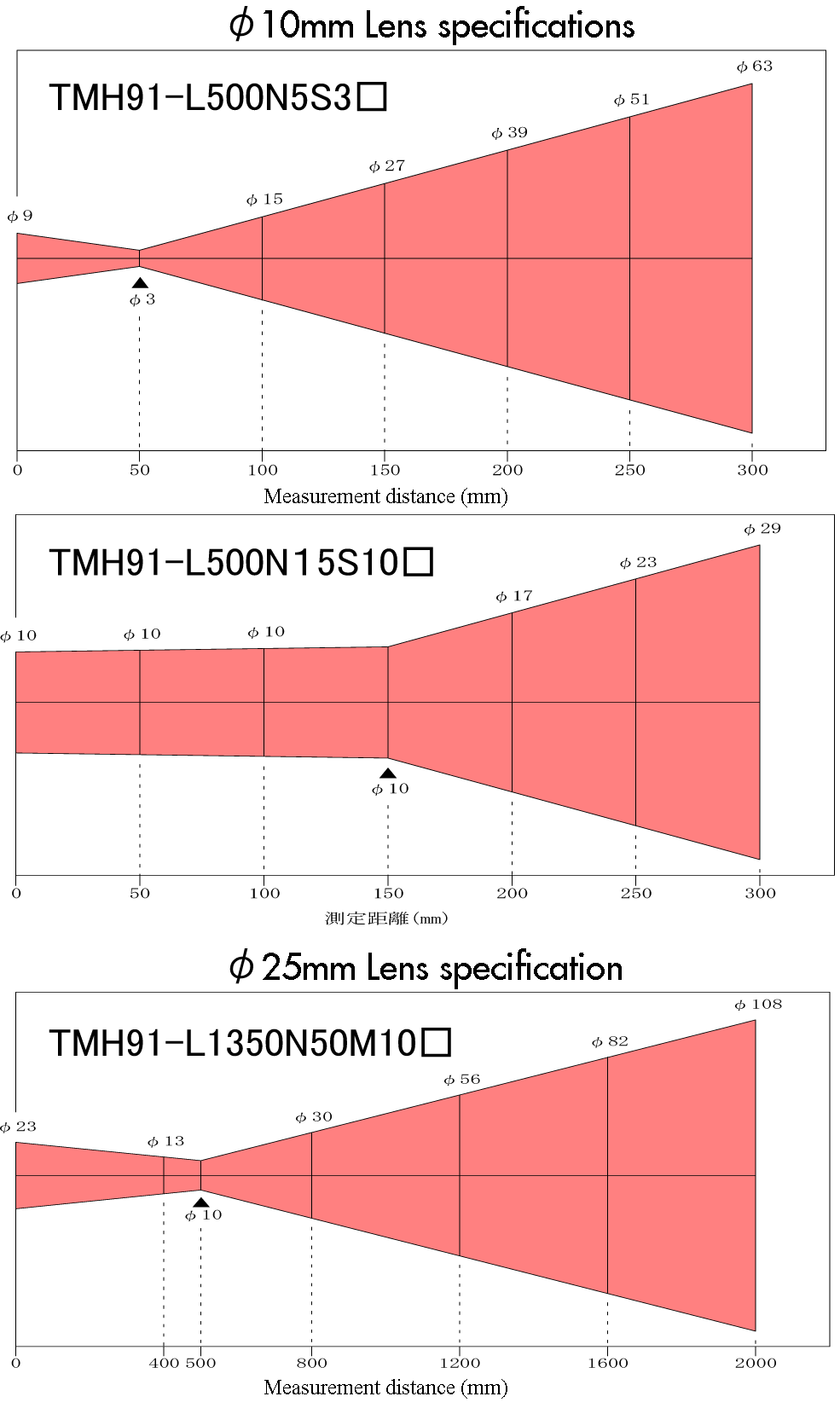

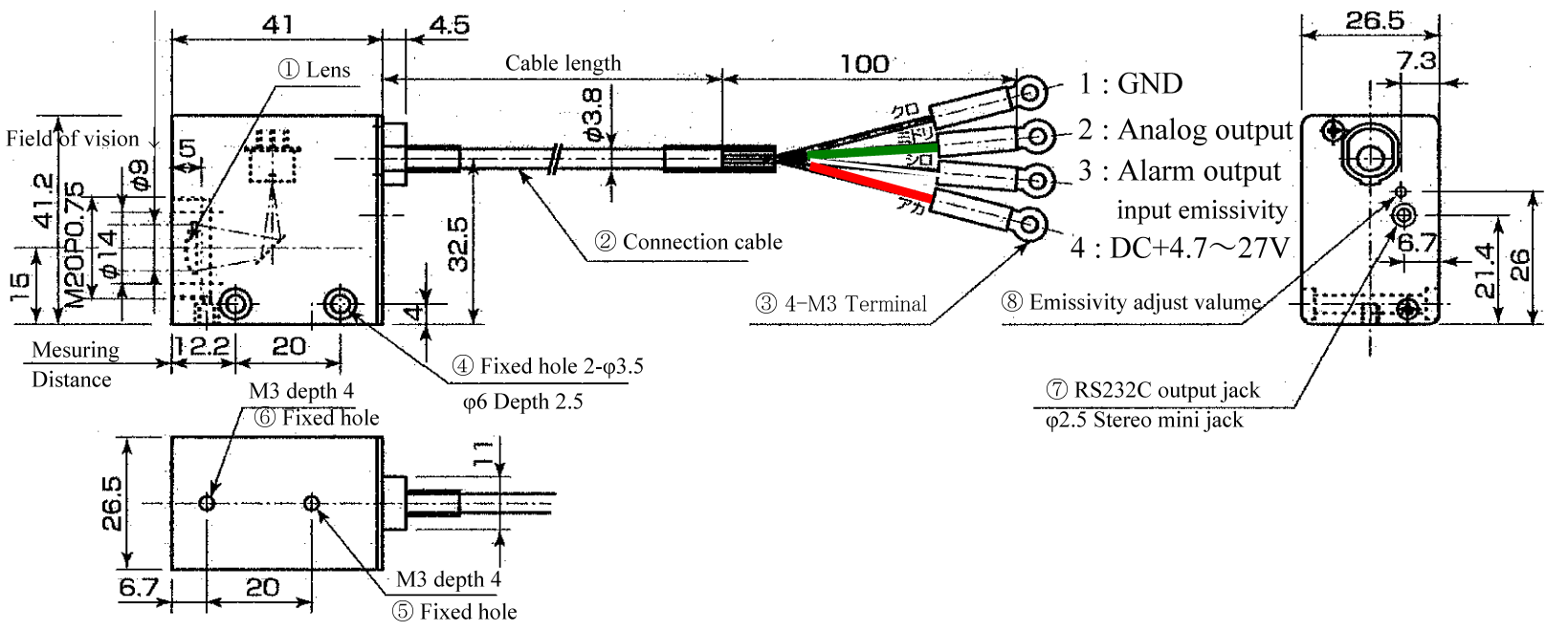

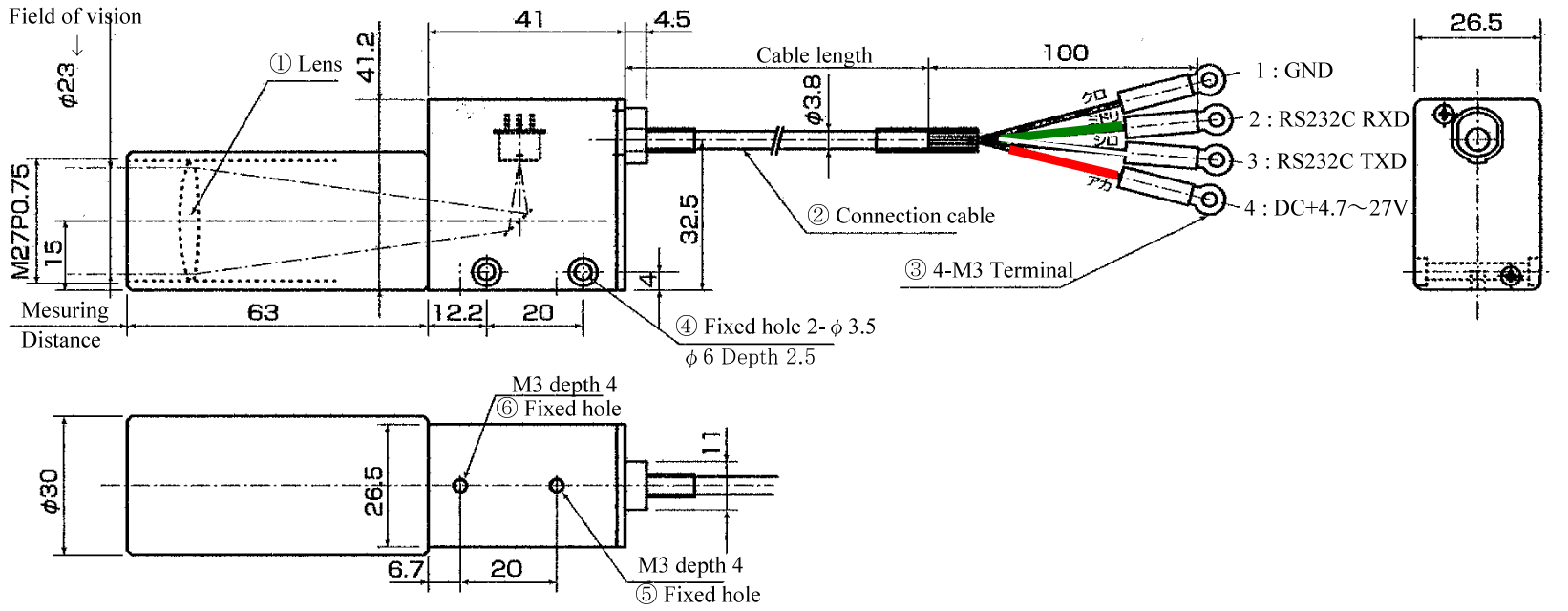

- SENSOR HEAD STRUCTURAL DRAWING
|
| Back to Top |

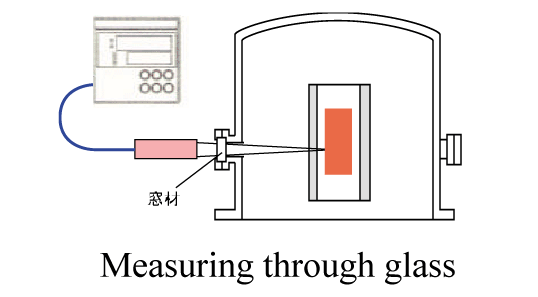

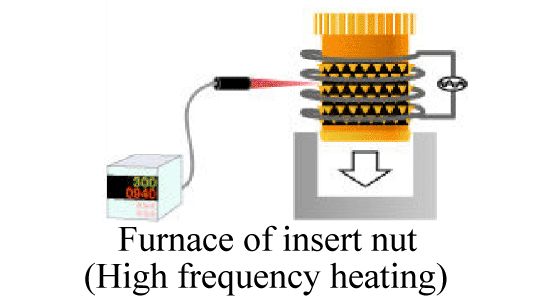

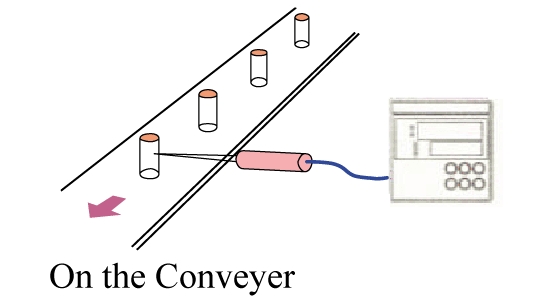

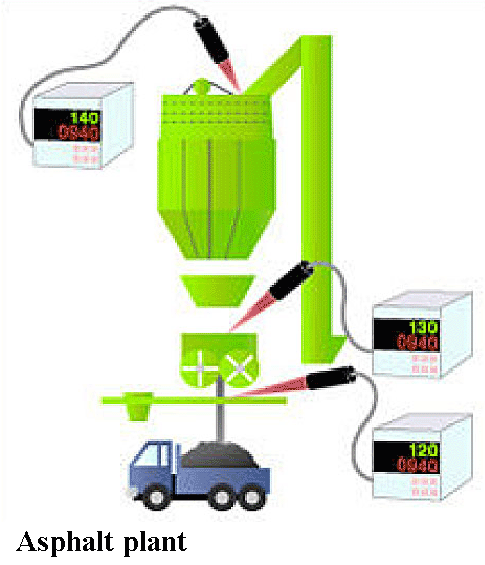

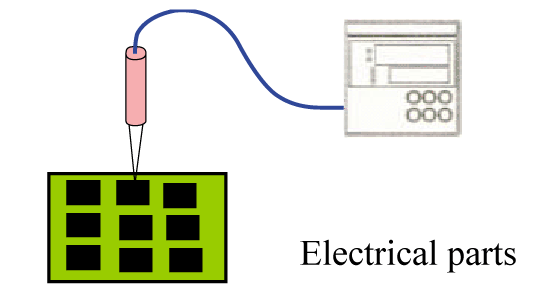

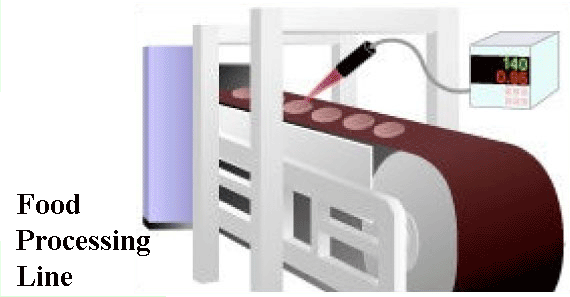

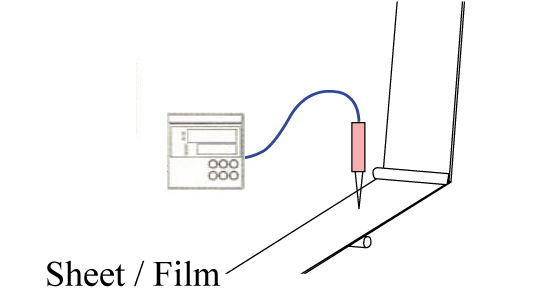

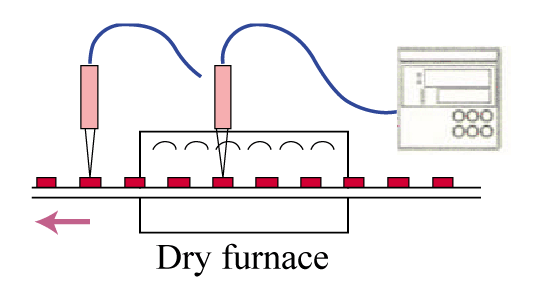

APPLICATIONS
(Click to enlarge each
pictures .) |
|
|
