CERAMIC WIRE WOUND RTD ELEMENTS

APPLICATIONS:

  • Direct applications in various liquids.
  • Chemical industry.
  • Applications requiring extremely high vibration resistance and mechanical stability (e.g. motor and naval construction)
  • Aerospace
  • Analytical equipment's.
SPECIFICATIONS:
Construction A platinum band is wound onto a solid glass core and homogeneously fused with the exterior glass. The lead wire connection is shear force resistant.
Nominal resistance value 100 ohms at 0°C
Tolerance class A and B according to DIN IEC 751. Narrower tolerance in restricted temperature ranges.
Temperature range -200 °C to +400 °C
Temperature stability Extremely long-time stable; drift after many years in use is possible
Vibration resistance Very high resistance to vibration and shock
Mechanical stability Insensitive to external forces and pressure
Environmental conditions Unhoused suitable for aqueous and organic liquids
Further special features
  • Small size
  • Easy modification according to customer demands
  • Connection wires are extremely well protected against being torn off
  • Very abrasive resistant

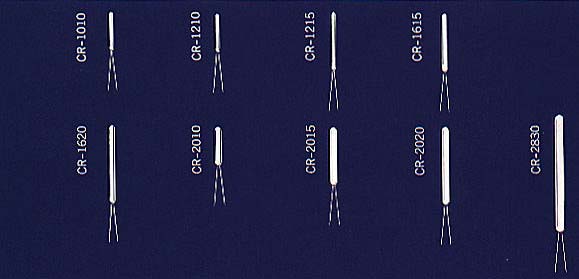

Types of Ceramic RTD

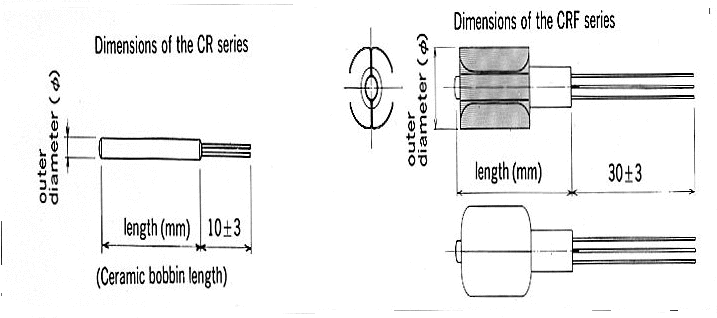

Dimensions of Ceramic RTD
Dimensions of Ceramic RTD
