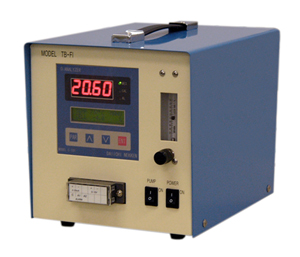

| Portable Oxygen Analyzer |
| TB|FI series |
What's TB|FI
Detective element is made of Zirconia electrolyte.
TB-F-P sensor and C-101 control unit are installed altogether in a box for portable uses.
This analyzer can be used for every application where range of 1ppm to 100%, but for accurate
measurement of high % oxygen, we recommend FG-X series. |
 |
FEATURES
- Wide range application, from 1ppm to 100%O2.
- Built-in multi-filter protects detector from dirt and corrosion.
- Output range can select freely.
- Serial communication function is equipped normally.
- AC85V ~ 260V power supply can be applied.
|
SPECIFICATIONS
| Handling |
Portable |
| Measuring range |
0~100%O2 |
| Display |
0.00%~100.00%O2 |
| Range |
1Range（0 to 100%O2 or 90 to 100%O2） |
| Output |
D.C.4～20mA or D.C.0～10V |
| Range |
Auto/Manual |
| Initial setting |
0~25％O2/0~1000ppmO2 |
| Alarm |
Output :Hi/Lo, HHi/Hi or Lo/LLo（each Ａ Point of
contact・LCD Display）
Failure：Disconnection of Heater, RTD（LCD Display） |
| Linearity |
Large one either of less than ±1％FS or±1ppm |
| Repeatability |
Large one either of less than ±1％FS or±1ppm |
| Response |
90% reading 10sec.（Swinging to a high density side） |
| Drift |
Less than ±2％FS/wk |
| Piping |
Rc1/4 |
| Sample Flow Rate |
0.2~2L/min |
| Sample Temp. |
300°C MAX. |
| Sample pressure |
Others 203kPa~1.33×10-1Pa（2atm~10-3Torr） |
| Warm up time |
About 20 minutes |
| AC Power |
AC85V~AC260V |
| Accessory |
Power supply code |
|
