| Guide Probe for Oxygen Sensor |
 |

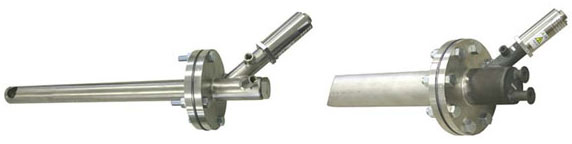

Guide probe Introduction
The guide probe is a sampling equipment which uses a flow of sampling gas. At first TB-IIG sensor should
be screwed into the sensor port. And it is installed in the short-pipe and the flange which was built
in the measuring point where has a flow such as a flue.
Sample gas is introduced from sample port of the tip of the probe, and led to the sensor along
the guide probe. Then sample gas is discharged to the sample exit in the downstream side.
It can be mounted vertical or horizontal on the flue wall.
* Please consider about the length of short-pipe so that the temperature of the sample gas is less than
350°C in the sensor installation point.
|
FEATURES
- The utility of instrmenting air and the power and so on is unnecessary because of sampling which used a sample gas stream.
- It is possible to select the low dust type or the high dust type according to the condition.
- Simple structure and easy maintenance at the site.
|
SPECIFICATIONS
| Measuring range |
Low dust type：SUS316 / High dust type：SUS316L |
| Installation |
Low dust type：JIS5K50A~ / High dust type：JIS5K80A~ |
| Length of insetion |
As your specification (MAX. 1500mm) |
| Sample gas temp. |
700°C max |
| Sample gas pressure |
±5kPa |
| Tubing |
Rc1/4 |
|
