| D2 LAMP DEUTERIUM LAMP |
|
 |
General type |
See-through type |
 |
|
|
|
| Nose type (synthetic quartz) |
 |
Type:
5201, 5211, 5601,
5611, 2201, 2211,
2601, 2611
|
- The windowis a flat plane, and uniform transmittance can be obtained.
- The window
does not become dirty easily, and the light emission does not decrease
easily. |
 |
| Straight type (UV transmission glass) |
 |
Type:
6201, 6211,6601,
6611, 3201, 3211,
3601, 3611,2601,
2611 |
- Attachment/detachment is easy, because there is no protrusion. |
 |
|
| Back to Top |
|
[Characteristics]
Structure of electrode General use type |
| Type |
Wave-
length
(nm) |
Heater |
Material
of window |
Brightness |
Discharge
starting
voltage
(V dc) |
Discharge
maintaining
voltage
(V dc) |
Rated
current
(mA dc) |
Output variation * |
Average
life (h) |
Voltage
(V dc) |
Current
(A dc) |
Drift |
Fluctuation |
| 5201 |
160 ～400 |
10 →7 |
0.8 →0.5 |
Synthetic
quartz |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
2000 |
| 5211 |
160 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 6201 |
185 ～400 |
UV
transmission
glass |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
2000 |
| 6211 |
185 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 5601 |
160 ～400 |
2.5 →1 |
4 →1.8 |
Synthetic
quartz |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
2000 |
| 5611 |
160 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 6601 |
185 ～400 |
UV
transmission
glass |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
2000 |
| 6611 |
185 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
|
|
| Structure of electrode See-through type |
| Type |
Wave-
length
(nm) |
Heater |
Material
of window |
Brightness |
Discharge
starting
voltage
(V dc) |
Discharge
maintaining
voltage
(V dc) |
Rated
current
(mA dc) |
Output variation * |
Average
life (h) |
Voltage
(V dc) |
Current
(A dc) |
Drift |
Fluctuation |
| 2201 |
160 ～400 |
10 →7 |
0.8 →0.5 |
Synthetic
quartz |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 2211 |
160 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 3201 |
185 ～400 |
UV
transmission
glass |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 3211 |
185 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 2601 |
160 ～400 |
2.5 →1 |
4 →1.8 |
Synthetic
quartz |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 2611 |
160 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 3601 |
185 ～400 |
UV
transmission
glass |
Standard |
350 |
65-90 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
| 3611 |
185 ～400 |
High |
400 |
70-95 |
300 |
±0.5%/h |
0.1%p-p |
1000 |
|
|

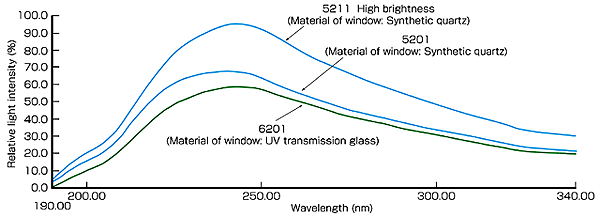

| [Spectral characteristics] |
 |
- Synthetic quartz: Transmission of@ultraviolet rays is high. Durability against ultraviolet rays is outstanding.
- UV transmission glass: Since less ozone is generated compared with synthetic quartz, no measures against ozone are necessary.
|
| Back to Top |
|

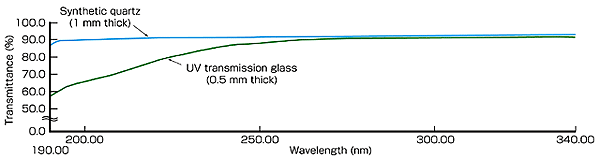

| [Transmittance of Materials for Window] |
 |
|
Guarantee period of a Lamp
A lamp is guaranteed for 1 year form its delivery date. |
Cautions on using Lamps
- While lit, harmful ultraviolet rays are generated. Do
not look at the lamp directly without protective glasses, nor expose your body
to the ultraviolet rays.
- While lit or just after turning off, the lamp is very
hot (higher than 200). Do not
touch the lamp directly.
- Dirty window of the lamp decreases transmission of the
ultraviolet rays. If dirty, wipe the window with a clear cloth moistened with
alcohol.
- High voltage is applied to start the lamp. Be careful
about electric shock hazard.
- Do not fix the lamp by holding the nose part because it
breaks easily.
|
