ULTRA MINIATURE CCD CAMERA ALPHA Model: CCN3412L

FEATURES

The special model with lighting :φ14mm × 100mm(excluded control parts)
Using 1/7 inch, 340,000 pixels, color CCD, you can see high-definition, high-resolution picture.
Video Output signal is NTSC. Connection with common television is possible by the attached AV cable.

DESCRIPTION

UNDER CONSTRUCTION

Image sample by Handy α

EXAMPLES OF USE

APPLICATIONS

ABOUT TO USE

Close-up　and magnification use
Working distance:
Standard lens ：20mm～
With Lens Adapter(option)：1.5～3mm

TECHNICAL SPECIFICATIONS

Sensor	1 / 7 inch CCD
IR Cut Filter	Attached
Indication Pixels	340,000 pixels
Pixel Pitch	4.52 μｍ×4.52 μｍ
Scanning Mode	2：1 Interlace
Video Output Signal	NTSC Composite Video
Field Angle	51°（Level）, 39°（Perpendicular）
Focal Distance	f =2.1mm
Brightness	F = 2.9
Material	CCD 　：Camera Cover：Aluminum、Controller Cover：ABS
Cable Length	1m
Cable Diameter	4mm
Weight	60g　(Without A/C Adapter)
Operating Temperature/Humidity	0～40℃ / 20～80％RH　(Without Dew Condensation)
Power Supply	DC12V
Input Current	110mA

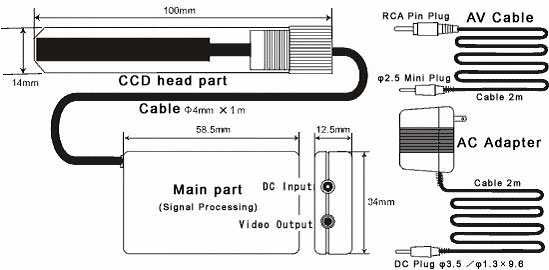

EXTERNAL DIMENSIONS

AC Adapter : Japanese specifications

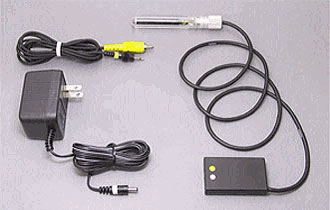

COMPONENTS
	CCD Camera with Controller. AV Cable. AC Adapter(I/P:100V～240VAC,O/P:12VDC) : Japanese specifications

OPTIONS

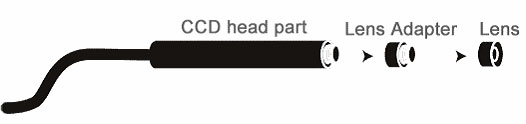

（１）Lens Adapter (4 adapters/per set) for higher magnification.
Lens Adapter

Magnification by Monitor Size and Lens Adapters (Reference Data）

Adapter	Magnification by Monitor Size and Lens Adapters					Field Range L×W mm	Working Distance mm
Adapter	5 inch	12 inch	14 inch	19 inch	21 inch	Field Range L×W mm	Working Distance mm
1 pc	25	60	70	95	105	3.4×4.0	3
2 pcs	60	144	168	228	252	1.2×1.6	2
3 pcs	115	276	322	437	483	1.2×1.6	1.5

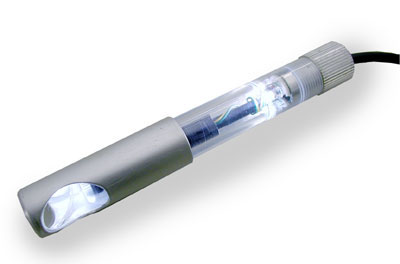

（２）Side-View Attachment
sokushi

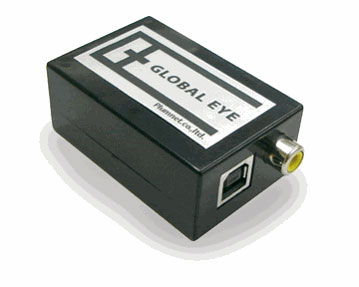

（３）USB　Video Capture

If you would like to connect the CCD Camera with P/C, you can use this USB video capture.

Specifications

Video input signal	NTSC/PAL
Power input	From USB port
I/F(interface)	USB2.0 based
Frame rate	VGA(640Hx480V)30frame/second
Dimension	37x57x23mm
Operating environment	・Pentium4 1.7GHz（recmendation 2.0AGHz) ・PentiumM 1.7GHz ・Memory: 256MB ・OS: Windows XP Vista
Attached soft	USB driver
Attached USB cable	cable length 500mm

（4）7 inch TFT Monitor

Video input signal	NTSC/PAL
Resolution	800(W)x400(H)pixels
Brightness	220cd/m2
Opration Voltage	DC12V
Dimension	182(W)ｘ133(H)ｘ35(D)
Weight	2kg
Function	Brightness, Contrast, Saturation and Hue
Video In terminal	1(BNC and RCA)
S-Video In terminal	1(Mini Din)
Video Out terminal	1(BNC and RCA)
AC Adapter	In:AC100V～AC240V Out:DC12V , 1.5A
Safety standard	UL, PSE

DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND TECHNICAL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
