| | FEATURES | DESCRIPTION | TYPICAL APPLICATIONS | TECHNICAL SPECIFICATIONS | FIELD OF VIEW | | ANALOG SCALING SAMPLE | DIMENSIONS | OPTION & ACCESSORIES | |
|---|
|
KTL series catalog |
- KTL-PRO (200~2000°C)
- KTL-PRO-04 (300~2000°C)
- KTL-ZERO-A (500~3000°C)
- KTL-ZERO-B (200~1200°C)
- KTL-ZERO-A-04 (700~3000°C)
- KTL-ZERO-B-04 (300~1200°C)
- Wide measuring ranges
- Precision optics with zoom
- On-line or portable use
- Adjustable sampling rate
- 2-way LED display of readings
- Analog and digital outputs through the multifunction AC adopter
- Option of wireless communication of measured data through blue tooth
(with optional pistol grip)

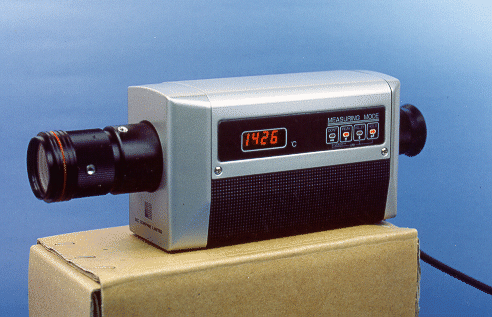

KTL series infrared radiation thermometers are combination of highly durable sensor, reliable microprocessor electronic and precision camera optics. It is provided with four measuring modes Cont/Peak/Valley & Hold. Measured readings are displayed on LED both inside the viewfinder and on side panel of the thermometer. Variable sampling rate can be set from 0.01 to 1.00 seconds allowing fast response or facilitating smooth readout if target temperature is rapidly changing. Analog and digital outputs are available as standard. PC communication software is included as standard accessory.
TYPICAL APPLICATIONS
 |
 |
 |
| Brazing temperature control for diamond cutter chip | Temperature control with flame raw | Measurement in vacuum chamber |
 |
 |
 |
| Control of high-frequency induction heating chip row | Temperature management of rod stick | Temperature survey of Furnace and furnace wall |
| Model | KTL-PRO | KTL-ZERO | ||||
| KTL-PRO | KTL-PRO-04 | KTL-ZERO-A | KTL-ZERO-B | KTL-ZERO -A-04 |
KTL-ZERO -B-04 |
|
| Temperature range | 200~2000°C | 300~2000°C | 500~3000°C | 200~1200°C | 700~3000°C | 300~1200°C |
| Display | 2-way, 4 digit LED inside the viewfinder and on side panel
|
|||||
| Measuring modes | CONT: continuous |
|||||
| Measurement Accuracy | ± 1% (at emissivity =1.00) | |||||
| Repeatability | ± 1°C (at emissivity = 1.00) | |||||
| Emissivity setup range | 0.10 to 1.00 Digital 2 way | |||||
| Response time | Sampling time: Adjustable from 0.01 to 1.0 seconds |
|||||
| Sensor | InGaAs | Si | InGaAs | Si | InGaAs | |
| Spectral response | 1.6μm | 0.9μm | 1.6μm | 0.9μm | 1.6μm
|
|
| Outputs | 3 default output: RS 232C/DC 0~10 V/ DC4~20mA Option: Bluetooth | |||||
| Optical System | Model: Coaxial single-lens reflex Field lens: f=127mm, F=4.2 Focal point adjustable range: 270mm~∞ Measured angle: 0.45° Finder: View angle=6.2° |
|||||
| Active power supply | AC 100~230V 50/60Hz (Supplied by AC adaptor) | |||||
| Power consumption | 30W (Supplied by AC adaptor) | |||||
| Tolerance temperature | 0~50°C (Without dew drop) | |||||
| Weight | 1.4 Kg (Main unit only) | |||||

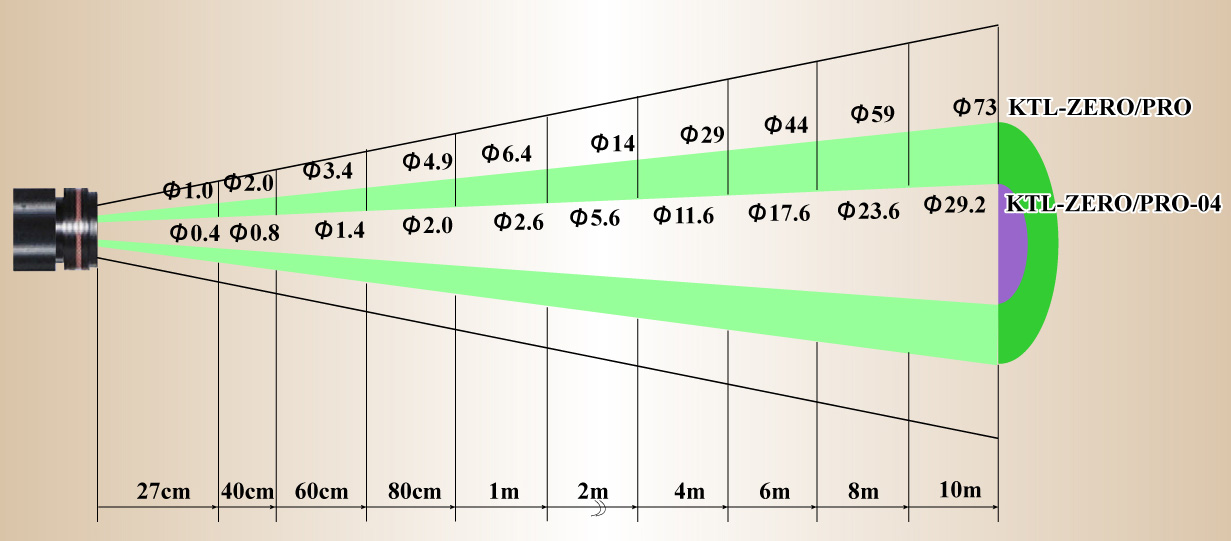

SPOT SIZE DETAILS AND FIELD OF VIEW DATA
 |
||
| Minimum spot size at 270mm KTL-P1: f1mm KTL-P04: f0.4mm |
Spot size at 1,000mm KTL-P1: f6.4mm KTL-P04: f3.2mm |
Spot size at 5 meters KTL-P1: f73mm KTL-P04: f37mm |
Click here to enlarge

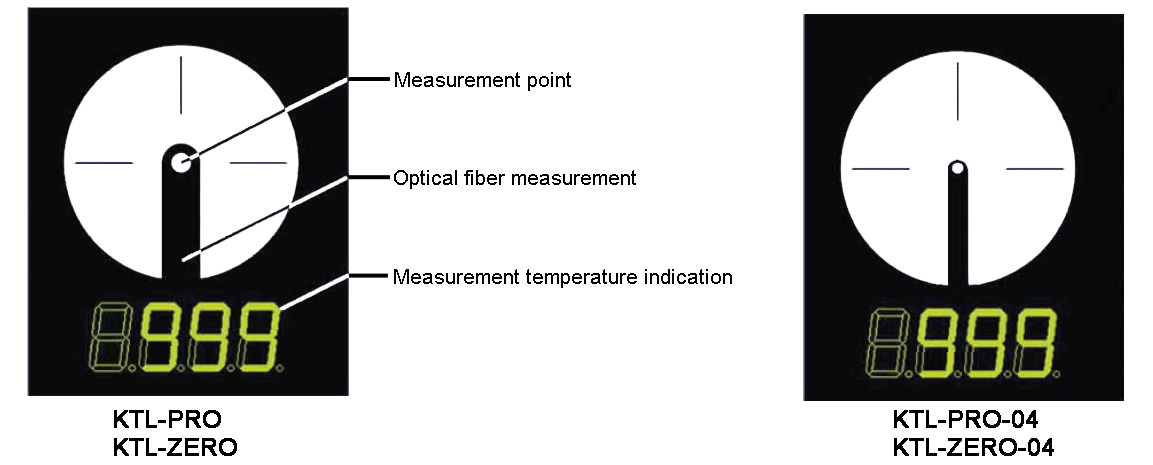

| VIEWFINDER DISPLAY |
 Click here to enlarge |

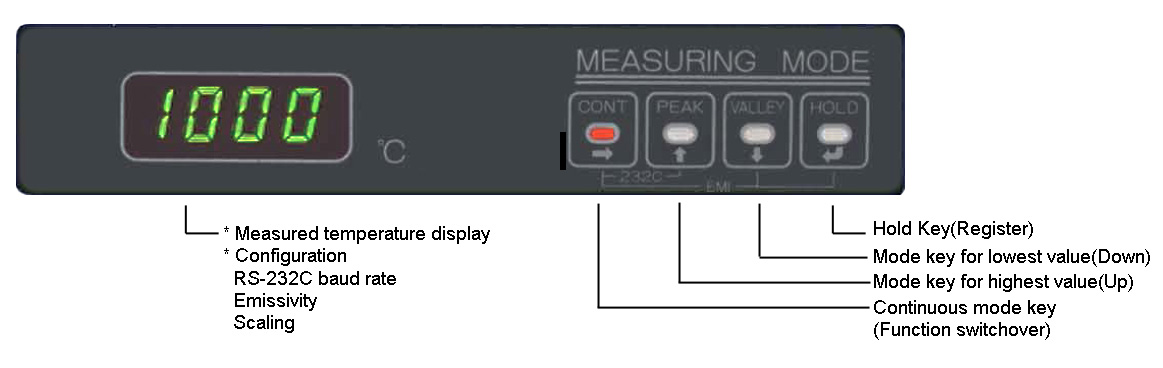

| SIDE DISPLAY & FUNCTION KEYS |
 Click here to enlarge |
ANALOGUE SCALING SAMPLE
 |
 |
| KTL-PRO 4~20mA scaled to 500~1500°C | KTL-ZERO 0~10V scaled to 0(250)~1000°C |

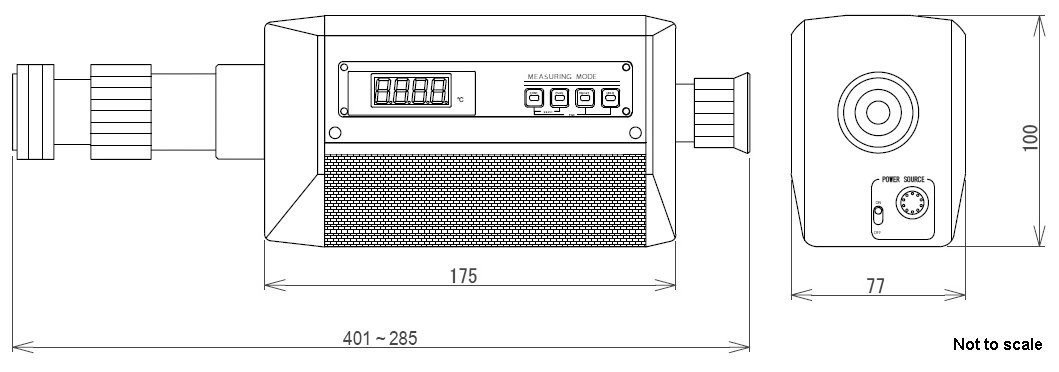

 Appearance size |

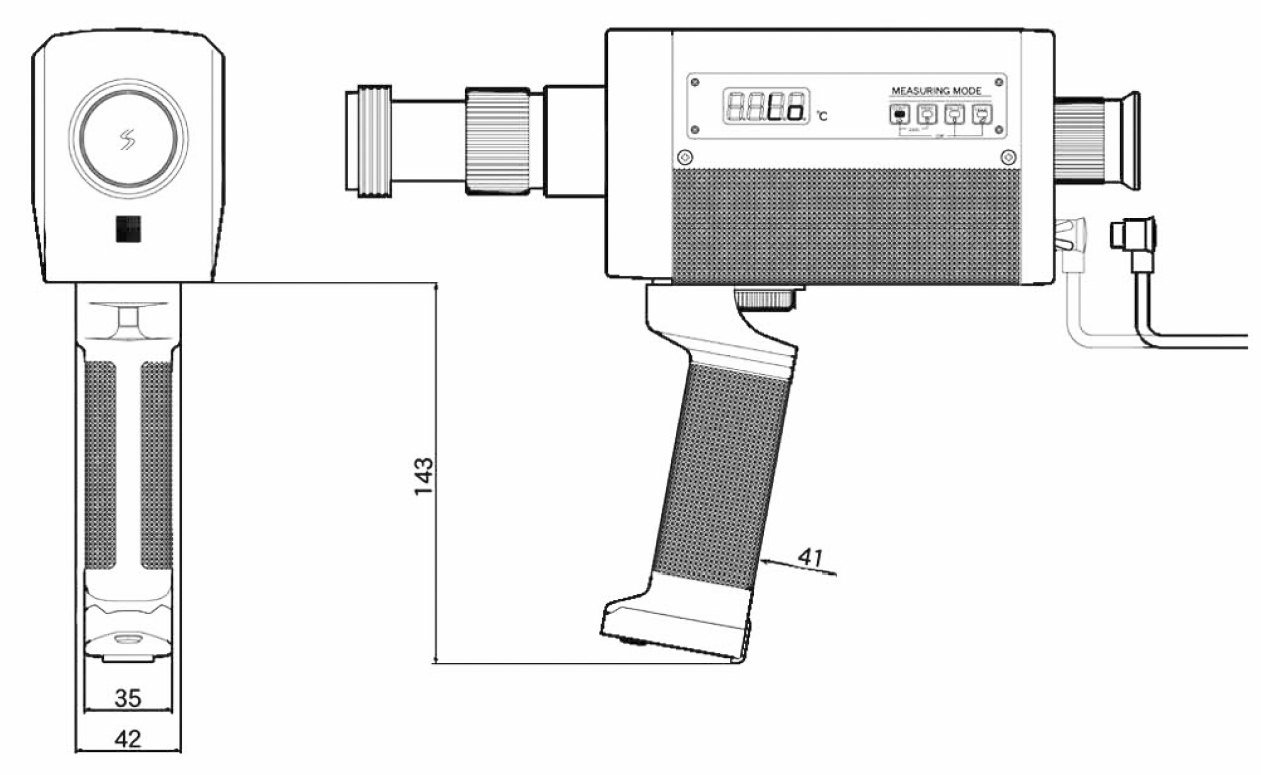

 Grip mounting |

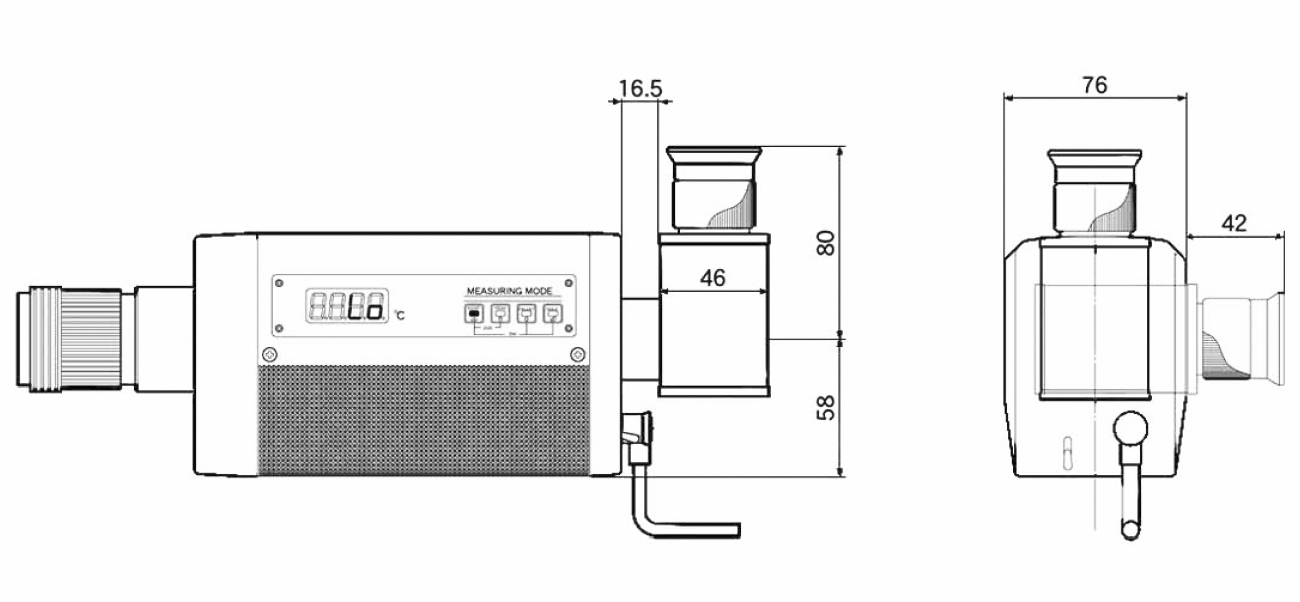

 L shape mirror mounting |
| WIRELESS BLUE TOOTH DATA COMMUNICATION | |

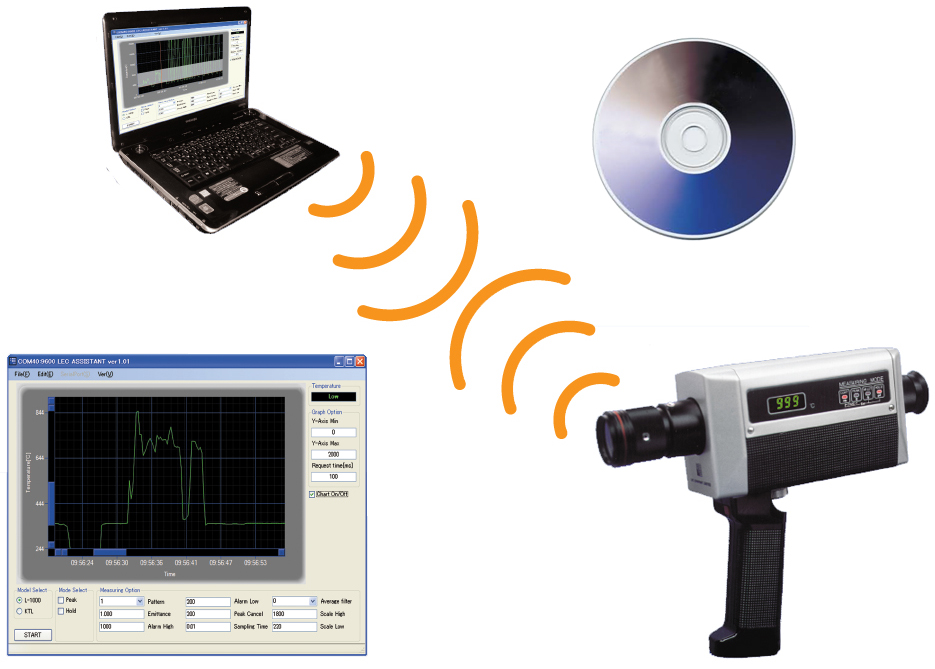

| New models KTL-P1-B and KTL-P04-B are capable of communicating measured data to a remote PC using Bluetooth (Version 2.0 + EDR) for high speed wireless data transfer. Distance to remote PC can be 30~40 meters using optional micro USB adopter. Communication distance varies depending on surrounding environment. Software to collect and display measured data is suppled as standard accessory. Data can be displayed in graphical form and can be read and written in CSV format. |  |
| ACCESSORIES | |||
 |
 |
 |
 |

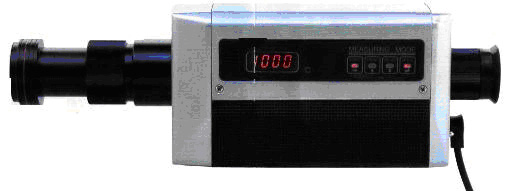

| KTL-PRO (basic model) | Pistol grip GL-ST | Pistol grip GL-DX + +charger | USB adapter |
 |
 |
 |
|

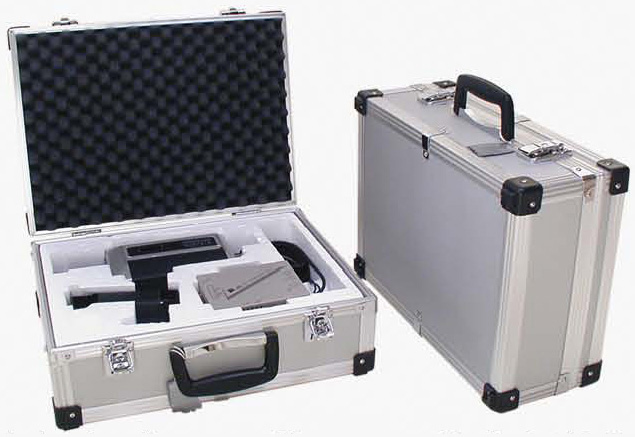

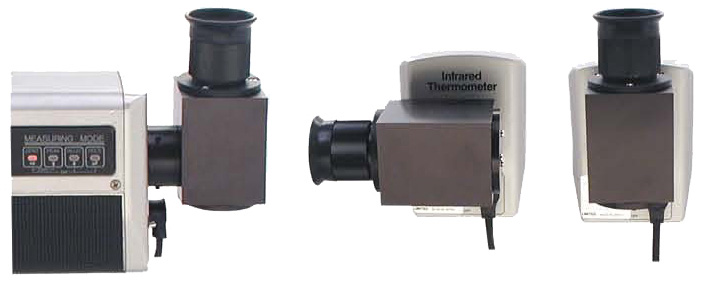

| Carrying case CK-1 | AC adopter PS-5 | Right angle mirror LM-1 | |
 |
 |
 |
 |
| Swivel head LA-1B | Swivel head LA-1G | DA converter | |
 |
 |
 |
|

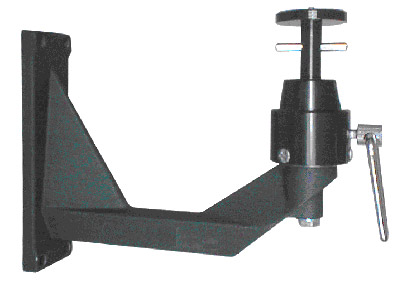

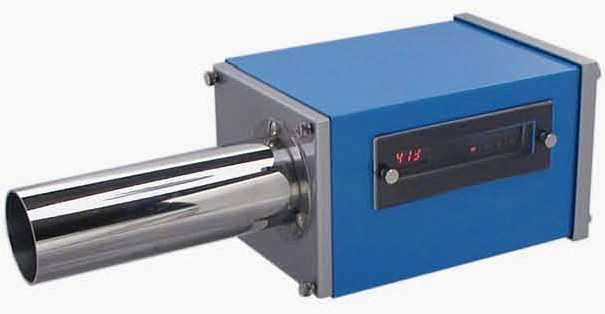

| Air purge F02-002 | Wall mount LA-2 | Tripod U-8000 | Tripod SL-68G |
