FEATURES

• Large emitting area with Wide visibility
• Simulated revolution f light with no vibration
• External switching from revolving to flashing mode
• Highly durable design with long operational life in field
• Model available with option of audio warning alarm or　melody through built-in speaker
• Environmentally friendly with electricity costs 1/3 as　compared to normal bulb type warning lamp

DESCRIPTION

Warning lamp VL-17M utilizes 160 pcs high brightness LEDs as light source poisoned in two tiers to provide wide visibility in a large area. Blue and green color lamps have 128 pcs of LEDs. The lamp uses LEDs consume much lesser electricity as compared to tradition bulbs and have longer life span of 40,000!50,000 hours as compared to life span of 10,000 hours of traditional bulbs. Sequential lighting pattern of LEDs simulates effect of revolving light. The lamp, in fact, is motorless and has completely vibration-less, maintenance free and trouble free operation. Lamp body is made from polycarbonate suitable for prolonged use in outdoor locations. VL-17M series lamp can be set to either revolving mode or flashing mode. Switching from revolving to flashing mode can be set from remote. Using internal dip switches, revolving mode can be set to fast or slow rotation sped and in flashing mode can be set to flash both tiers of LEDs to flash simultaneously or alternately in sequence. Optional models are available with internal speaker for audio alarm. User can choose from two types of audio warning alarms or two types of audio melodies.

Click to enlarge

[Protective characteristic:
IP23(Front direction mounting) Buzzer sound pressure:Up to 70dB(at 1m)]

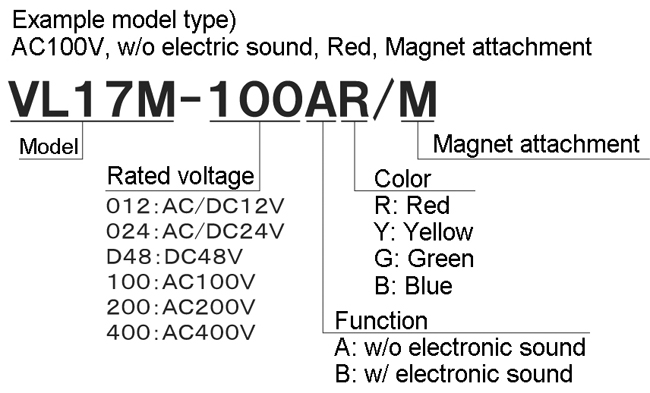

* The light bulb color's initial letter enters □ part.(R: Red, Y: Yellow, G :Green, B:Blue)

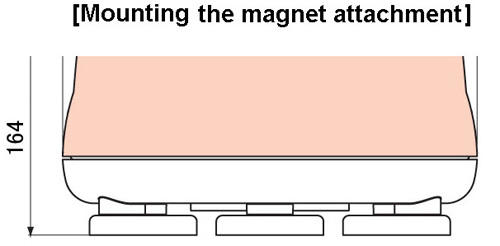

* The magnet attachment letter "M" enters △ part.
* Blinking is given to priority in the revolving and blinking.
* The warning sound is given to priority in the melody

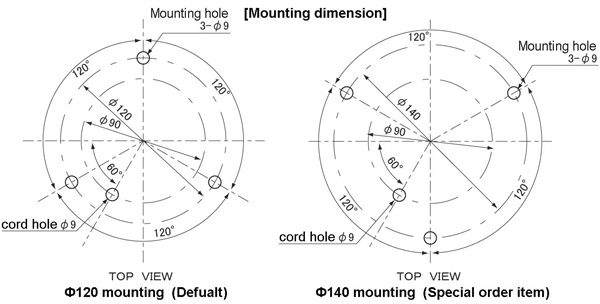

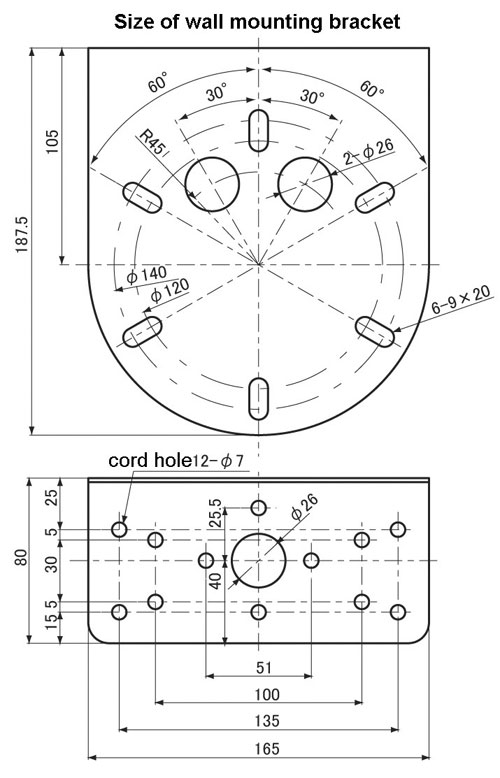

DIMENSIONS

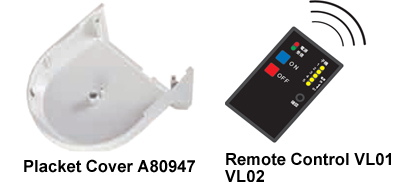

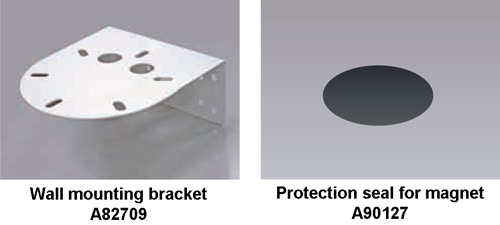

OPTIONAL ACCESSORIES
