UV FLAME DETECTOR
Model: FL-3W
PDF catalog PDF catalog

FEATURES

  • Compact size
  • Wide viewing angle and fast response
  • Can easily be installed in any location
  • Sensitive even to clear flames and sparks
  • Built-in microcontroller continuously analyzes incoming signals to distinguish between actual flame or spark and false signals
FLAME DETECTOR Model: FL-3W

DESCRIPTION

Flame detector FL-3W is a safety device that continuously watches over a selected area to detect presence of flame or spark and instantaneously send an alert signal to prevent a major fire accident. It utilizes extremely sensitive UV sensor and state-of-the-art microcontroller with proprietary software to distinguish between real flame and false signals for sources like lamps in its field of view or surrounding area. This unique flame detector has been installed in various fueling stations, industries flammable material handling areas. It has also been installed in major national projects of government fo Japan.


TYPICAL APPLICATIONS

  • Laboratories and testing rooms
  • Plastic and gum forming processes
  • Welding process safety monitoring
  • Flammable material polishing process
  • Semiconductor manufacturing process
  • Fuel cell battery manufacturing process
  • Combustion monitoring of gas burners
  • All sorts of plant facilities and storage areas
Fueling station
Fueling station
Chemical laboratory Engine laboratory Semiconductor manufacturing process
Chemical laboratory Engine laboratory Semiconductor
manufacturing process

TECHNICAL SPECIFICATIONS
Detecting range

10 meters (Lighter flame of height 8cm). Detection distance expands if the flame volume is larger, as per sensitivity behavior shown below

Detection angle

140° (both horizontally and vertical direction)

Response time

17.5ms

Detecting output

Relay contact output (AC 100V, 0.15A/DC60V, 0.5A, fire breakout, accidental fire, and power monitorj

Open collector output (25DCV, 20mA)

LED indicators

Power-supply LED (Green) :lights up in  power-on condition
Alert LED (Red): lights up on detecting flame

Ambient temperature

-10°C~ 50°C (non-condensation atmosphere)

Electric fuse

Chip fuse

Power supply

12V to 24 VDC (Consumption current 0.1A)

External dimensions

W 65mm X D 65mm X H 43mm (Excluding projection portion)

Finishing coating color

Electro-statically painted, color: 5x7.5/1

Weight

Approx. 300 grams

Accessory

Connecting cable (3m)

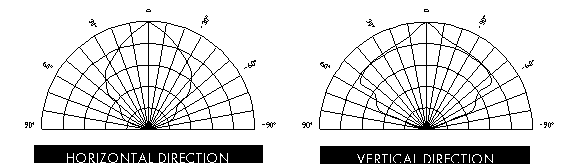

DIRECTIONAL SENSITIVITY BEHAVIOR
DIRECTIONAL SENSITIVITY BEHAVIOR

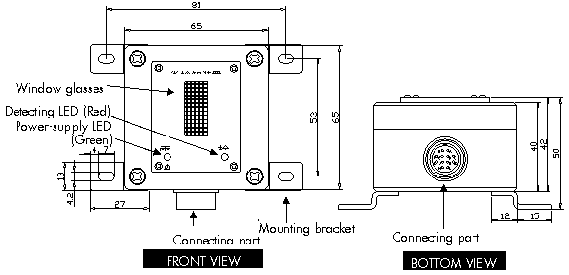

EXTERNAL DIMENSIONS
EXTERNAL DIMENSIONS

DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND TECHNICAL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
