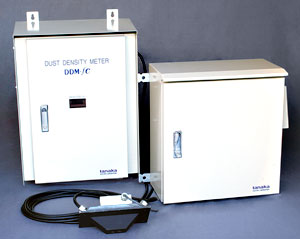

| DUST DENSITY METER |
| MODEL: DDM-fC |
OUTLINE
This dust density meter (DDM-fC) is developed for high temperature such as Indian condition and equipped displays and automatic-measures dust density continuously as relative density by the light scattering method, and has the following features.
View PDF Catalogue
|
 |
MERIT
- A detector is directly attached to chimney. This is the high sensitivity system which measures the amount of optical dispersion reflected in the dust particle, even when there is little dust density.
- Since the detector is one unit, there are the following advantages compared with the thing of an optical penetration type.
- Since the two-place construction by the side of transmission and receiving is unnecessary, a cost of construction ends at a low price.
- A detector does not have worries about "a gap" of light axis by heat distortion.
- Piping of purge air requires only one place.
- Since it is separated from this dust density meter control box and the detector, there are the following advantages.
- It is setting up the length of an optical fiber in 2 - 5m, and the control box installation to the place which is easy to maintain using the existing handrail and a scaffold is possible.
- A detector can be installed in hot chimney because of the composition of only mechanism parts. An electronic circuit is protected from heat by detaching a control box in that case.
- Since the synchronous detection system which used the light of fixed cycles is taken, it is not influent from other light sources. For this reason, measurement near the air opening part is also possible
- Since the detector is purged by the special method, it has almost no adhesion of dust. Moreover, use under high temperature and high pressure can be performed according to peculiar structure.
- Since a halogen lamp, a motor, etc. which are articles of consumption are using the general-purpose article, availability is good and comparatively simple also for the exchange work.
- Range change, zero, and span adjustment can be performed also in operation. Moreover, zero adjustment can be performed to a constant cycle by being automatic. ( Just before value is held during zero adjustment)
- Various alarm points of contact, and state surveillance is made.
|
|
| Back to Top |
BUSINESS WAY
Dust in the exhaust gas discharged from all combustion equipment is measured by relative density that carrying out continuation measurement For example, when got blocked and tear occur in a bag filter, since a dust density meter can measure at an early stage, it can prevent dust emitting to the atmosphere beforehand.
- The present dust density can be known on real time
By creating the correlation diagram of the amount of dust measurement between the output signal and the uniform drawing-in method (the JIS method) , we can know the present dust density on real time. Thereby, operation management of EP and bag filter which observes dust density can be performed. |
|
| Back to Top |
| SPECIFICATIONS |
| Control box (Type : DDM- fC) |
| Structure |
Wall mount outdoor installation type |
| Principle |
90 degree back ward light scattering method |
| Light source |
Halogen light) |
| Measurement range |
0 – 500 mg/Nm3 relative density output (range is variable) |
| External output |
DC 4-20mA Isolated output (load resistance less than 750Ω ) RS-232C I/F output (a port is prepared) |
| Display |
Digital panel meter of 0 - 100% |
| Alarm / failure output |
1. Power supply shutdown alarm
2. Failure of motor, lamp, internal power supply voltage, automatic zero adjustment (Dry “a” contact output : contact capacity : AC / DC 200 V, 0.1A) |
| Calibration |
1. Zero point adjustment.@Automatic / manual change selection. The execution cycle at the time of automatic selection is 7days or 30days
2. Span adjustment. Optical fiber cables are connected to calibration box. Span adjustment with manual operation. |
| Integration time variable range |
About 5 – 100 second |
| Temperature stability |
1. Meter display ± 2% / 10
2.
External output ± 2% / 10 |
| Long time stability |
±2% / 1 week |
| Power supply |
AC100V±10% (50Hz), 4A from purge air pump box |
| Circumference temperature |
-10`{50 |
| Outside size |
500 x 670 x 270mm |
| Weight |
Approx. 45kg |
| Finish painting color |
Munsel 5Y7/1 G=40 |
| Optical fiber cable set |
| Diameter of bundle / Length |
4φ×4m (standard) |
| Structure |
With the flexible guard made from stainless steel with PVC covering.
Covering heat resistance temperature 60 |
| Operating temperature (bundle part) |
Continuation use temperature 200
(300 of instants are good)
However 350 continuation use is possible by connecting to the detector.Purge air cools optical fiber cables in the detector |
| Bundle part materials |
1. Transmitting: Aluminum / stainless steel
2. Receiving: Delrin / stainless steel |
Back to Top
| Detector |
| Size |
260 x 125 mm |
| Weight |
Approx. 5kg |
| Material |
Stainless steel (SUS303) |
| |
Cartridge heater is equipped in order to prevent that the detector’s silica glass becomes cloudy with dew condensation by the moisture in purge air. |
| Surface treatment |
Measurement part: heat resistance paint |
| Structure |
Peculiar air purge structure by silica glass. |
| Attachment |
200 x 65 mm rectangle hole is opened and attached to the duct.
Please give the flange of an attachment part as construction side preparation. The packing between flange-detector is standard appending. |
| Connection of purge air |
Female screw of PT 1/4 (cheese union) |
| Calibration box |
| Size |
30 x 30 x 130mm |
| Structure |
It has the fixed amount of penetrations by small holed diaphragm
and polarizing filter.
Small holed diaphragm and polarizing filter are set up at the time of real operation. |
Back to Top
| Purge air pump box (Dry pump built-in type ) |
| Purpose |
It is used for maintenance free operation of detector head. |
| Installation restrictions |
This unit is able to use in case of that process gas pressure is of the same grade as atmospheric pressure or when it is minus pressure |
| Structure |
Purge air exhausted from dry pump is breathed out from detector
head. |
| Air flow |
Approx. 100 l/min |
| Alarm / failure output |
Air flow stop alarm by pump failure |
| Power supply |
AC220V±10% (50Hz), Capacity 1KVa |
| Circumference temperature |
-10 ~{50 |
| Size |
530 x 504 x 322mm |
| Integration time variable range |
About 5 – 100 second |
| Temperature stability |
1. Meter display ± 2% / 10
2.
External output ± 2% / 10 |
| Long time stability |
±2% / 1 week |
| Power supply |
AC100V±10% (50Hz), 4A from purge air pump box |
| Circumference temperature |
-10`{50 |
| Ssize |
530 x 504 x 322mm |
| Weight |
Approx. 35kg |
| Finish painting color |
Munsel 5Y7/1 G=40 |
|
| Back to Top |
|
COMPOSITION
| Please refer to the composition figure of the following page. |
- Control box (Type : DDM- fC)
|
It consists of power supply circuit, light source equipment, light receiving circuit, signal processing circuit of CPU. The heat exchanger is built in as a measure against temperature by outdoor installation.
|
|
|
It is attached to the duct or chimney in order to measure dust density.
The optical fiber cables from control box are connected.
Since this detector has the structure of dividing inside and outside of duct with silica glass (3mm of board thickness), span calibration is possible under high temperature and high pressure exhaust gas by removing optical fiber cables safely.
Cartridge heater is equipped in order to prevent that the detectorfs silica glass becomes cloudy with dew condensation by the moisture in purge air.
|
|
- Transmitting optical fiber cable
|
The light (halogen light) of fixed cycle made with the light source equipment in control box is sent to detector through this optical fiber.
|
|
- Receiving optical fiber cable
|
The scattering light by dust is sent to the light receiving circuit in control box through this optical fiber
|
|
|
Remove optical fiber cables from detector and connect to this calibration box.
And decide Span adjustment value.
(This calibration box is set up during real operation there)
|
|
|
Purge air exhausted from dry pump is breathed out from detector head.
AC100V power supply for control box is transformed by this pump box.
|
|
|
|
