N2PSA O2 Analyzer |
CG-TM |

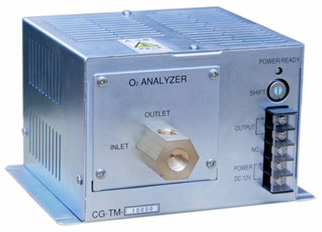

What's CG-TM
It is the oxygen analyzer that CG-SM is made simpler. (Sell it
more than ten lot.) |
![](../img/o2/o2_cg_tm.jpg) |
FEATURES
- Small amount sampling.
- Compact design.
- Simple structure, easy maintenance.
|
SPECIFICATIONS
Installation |
Indoor type, Plane/Wall type |
Measuring range |
100ppmO2 ~ 5%O2 |
Range |
1range Selection of 0-1000ppmO2 / 0-10000ppmO2 / 0-5%O2(Other consultations necessary) |
Output |
D.C.0-1V |
Linearity |
Less than ±3%FS |
Responsibility |
Less than ±3%FS |
Response |
90% reading 10 sec. (Swinging to a high density side) |
Drift |
Less than ±3%FS/wk |
Sample Condition |
Not contain moisture, dust, causticity gas, halogen gas, and combustible gas, etc. |
Sample flow |
100±10cc/min |
Sampling |
sample press introducing |
Sample pressure |
0.01~0.05 MPa |
Using temp. |
80°C MAX. |
Piping |
INLET and Outlet Rc1/4 |
Warm-up time |
About 20 minutes |
Utility |
DC12±0.1V 2.5A |
Using temp. |
0~50°C |
Option |
Flow meter with needle valve, Scaling meter (Necessary external power supply) |
*For the improvement, the specification and design may be changed without prior notice.
|
