HOLLOW CATHODE LAMP PDF

FEATURES

  1. Low detection limits
    State-of-the-art manufacturing techniques ensure maximum stability and sharp emission lines enabling lowest possible detection level.
  2. Low warm-up time
    Lamp achieves its maximum stability level very quickly enabling immediate analysis. Even the most volatile elements such as lead and cadmium have short warm-up time.
  3. Extended service life
    Superior design, high quantity components and strict quality control ensures long serv9ce life of 5000mA hours of service life of lamps with all elements except for As and Se that have service life of 3000mA hours.
Structure of electrode

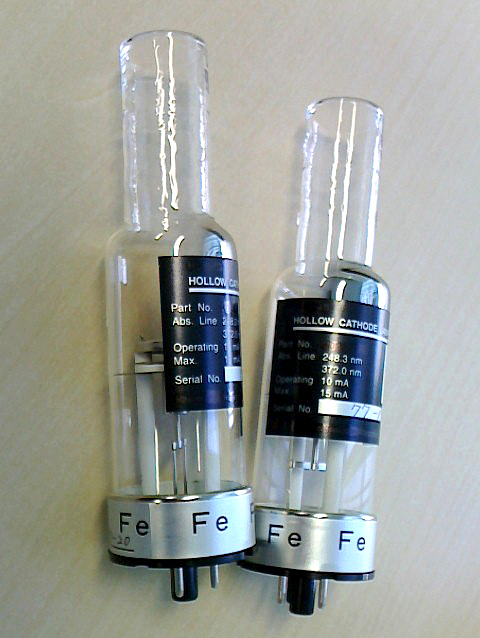

HOLLOW CATHODE LAMP
WITH IRON ELEMENT


TECHNICAL SPECIFICATIONS

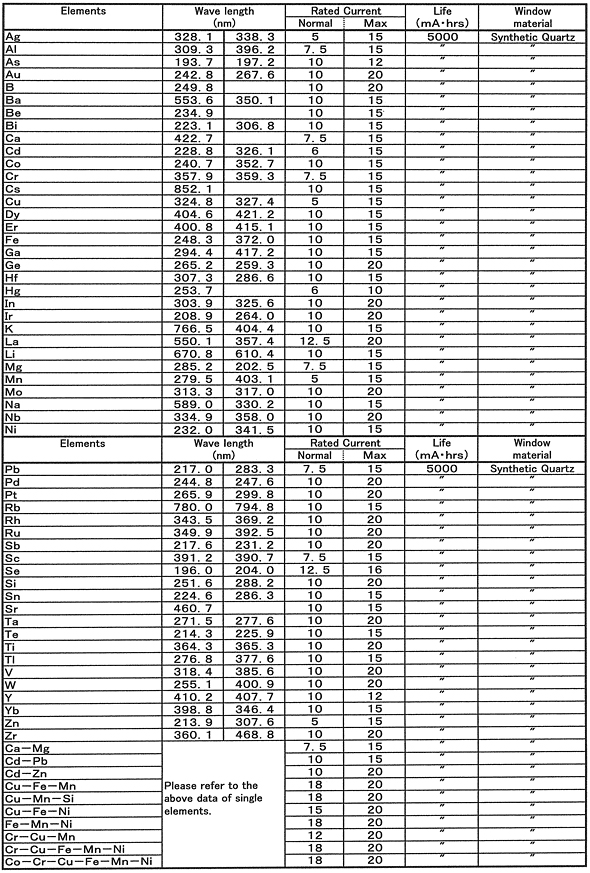

Hollow cathode lamp chart
Back to Top

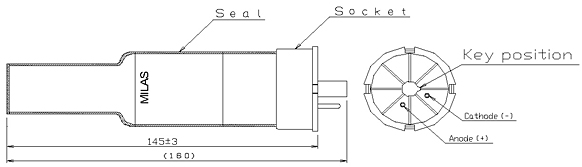

DEMENSIONAL DETAILS
HCL-dimensional drawing

DUE TO CONTINUOUS PRODUCT IMPROVEMENT, THE DESIGN AND TECHNICAL SPECIFICATIONS
TO CHANGE WITHOUT PRIOR NOTICE
